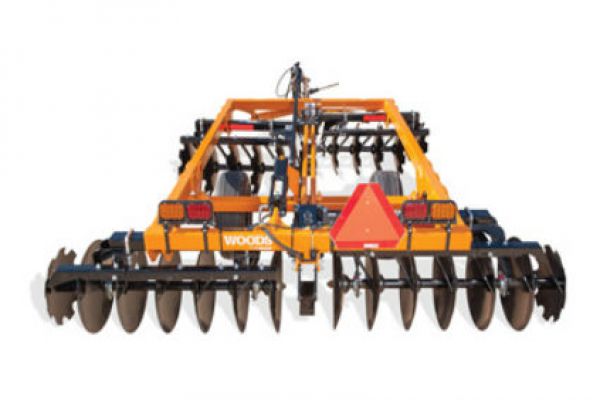

Woods DHM96

Double tap to zoom



Features

  • 96-inch working width
  • Tractor HP range: 55-85
  • Rugged, tapered frame and durable bearing hangers extend work life
  • Notched blades cut into the dirt; smooth blades leave a fine finish
  • Independent disc blade gangs adjust easily
  • Greasable, self-aligning ball bearings ensure long-lasting performance
  • Quick-hitch compatible
  • Optional mud scrapers and furrow fillers improve efficiency and productivity

Specifications

Tractor Engine HP 55-85 hp
Tractor hitch Cat 1 and 2
Working width 96"
Average Weight (depending upon blade type) 960 lbs
Average Weight per Blade 44 lbs
Disc Type notched or combo
Disc Diameter 20"
Disc quantity 22
Disc spacing 9" front, 7.5" rear
Frame Construction 3" x 3" tube
Gang Axle Diameter 1-1/8" square
Angle Adjustments 0° to 21°
Bearing Type greasable, self-aligning
Quick-hitch compatible yes
Duty Class Medium-duty
