Apply NowWoods DHH126T
Not a current model

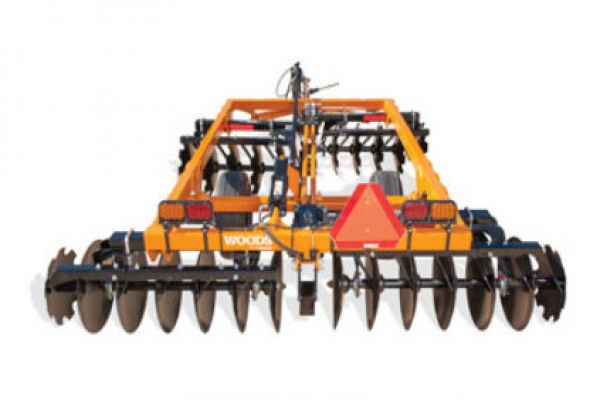

Disc Harrows DHH126T
There’s nothing like the smell of fresh-turned dirt, especially when you’re doing what you love… working the land.
Whether you’re breaking new ground for a garden, or tilling an existing nursery, food plot, vineyard or farm, Woods has the right – the best – disc harrow for your land. You will get years of productive... + Read More
Features
- 126-inch working width
- Tractor HP range: 60-100
- Offset/tandem gang configuration leaves an even, best-in-class finish across entire width
- Forward positioned wheels transfer load to a rugged frame, not cylinders
- Greasable end pins and self-aligning ball bearings ensure long-lasting performance
- Extended tongue design distributes load throughout heavy-duty frame and allows tight turns without hitting tractor tires
- Inside, outside, or (optional) dual wheel positions
- Optional furrow fillers, adjustable mud scrapers, and a rear drawbar for towing
Specs
| Tractor Engine HP | 45-100 hp |
| Tractor hitch | Pull-type, 1.25" pin |
| Working width | 126" |
| Length (including tongue) | 209" (20" blades) or 210" (22" blades) |
| Transport height | 48" |
| Operating Height (max.) | 40" |
| Weight (20" blades / 22" blades) | 2,610 / 2,770 lbs |
| Disc Type | Smooth or Notched |
| Disc Diameter | 20" or 22" |
| Disc quantity | 28 |
| Disc spacing | 9" |
| Frame and Gang Tubes | 4" x 3" |
| Front Gang | Offset - 0° to 21° (7 positions) |
| Rear Gang | Tandem - 0° to 21° (7 positions) |
| Bearing Type | Sealed, self-aligning |
| Tires | Rims, Ag, Used Aircraft, Foam-filled Used Aircraft |
| Tongue Jackstand | Standard |
| Light Kit | Standard |
| Disc Scrapers | Optional |
| Furrow Fillers | Optional (16", 18", or 20" disc blades) |
| Spare Tire Rack | Optional |
