Apply NowWoods BH80-X
Not a current model

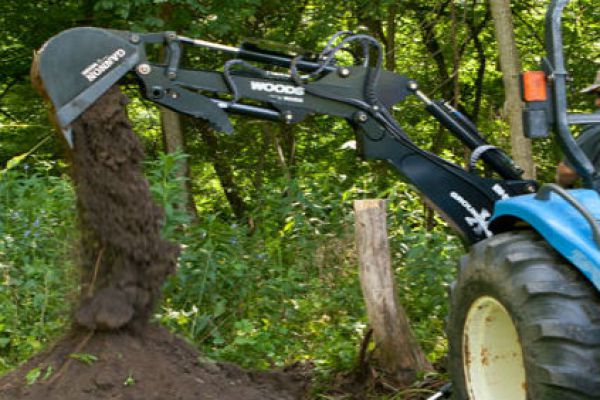

Backhoes BH80-X
Get a Woods Groundbreaker® Backhoe to handle your most challenging digging and trenching jobs. Backed by Woods’ reputation for durability and reliability, the X-models feature our construction-grade Gannon® buckets. Tested in real-world conditions, the entire Groundbreaker® line offers an excavator-style boom, rugged c... + Read More
Features
- 8-foot maximum digging depth
- Tractor HP range: 20-45 hp
- Bucket widths from 9 to 36-inches
- 2-year, limited warranty – The best in the industry
- Durable, heavy-duty boom, dipper stick and dual swing cylinders
- Compatible with many OEM belly mowers
- Ideal for hard-to-reach commercial or residential digging and cleanup jobs
- Optional mechanical or hydraulic thumb to easily pick up bulky materials
- Available in black or paint colors to match most tractor brands
Specs
| Models | BH80-X |
| Tractor Engine HP | 20 - 45 hp |
| Digging depth - 2' flat | 96.5" |
| Digging depth - 8' flat | 75.75" |
| Reach from swing pivot | 125.5" |
| Loading height | 75.25" |
| Transport height | 82.25" |
| Swing arc | 180° |
| Bucket rotation | 180° |
| Stabilizer spread (up) | 58.5" |
| Stabilizer spread (down) | 88.5" |
| Relief pressure | 2,470 psi |
| Bucket digging force | 3,780 lbs |
| Dipperstick digging force | 2,470 lbs |
| 2-cylinder swing | yes |
| Swing speed control | yes |
| Bucket widths | 9" - 36" |
| Bolt-on vs. pin-on teeth | Bolt-on |
| Thumb | optional |
| Flip-over stabilizers | mechanical standard |
| Stabilizer street pads | optional |
| PTO pump kit | optional |
| Clean-up (ditching) bucket | 36" |
| Cemetery bucket | 36" |
