Worksaver SASB-84 for sale at Coastal Tractor, California

Double tap to zoom

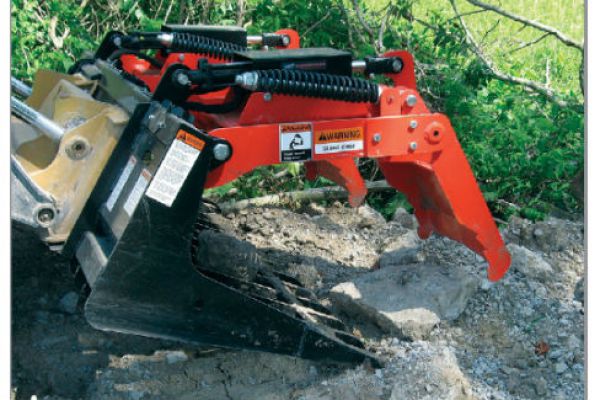

Worksaver SASB-84 for sale at Coastal Tractor, California



Features

One Tool: many applications, best describes the Sweep Action Tine and Solid bottom construction grapples. The patent pending design keeps the front rake of the sweep clamp open during use until the rear section of the clamp is either closed or contacts the material being handled. The cylinder then overcomes the spring pressure causing the front rake to rotate towards they bucket in a sweeping motion moving material in and retaining it in the bucket.

The upper sweep-in clamps are 21 inches in width with solid steel front for added strength, as well as material control. They are raised, lowered, and closed by 2" x 8" 3,000 psi cylinders.

SASB-series features our scrap yard tested solid bottom low-profile bucket. The bucket bottom is made from abrasion resistant steel with three 1/2" x 4" reinforcing wear strips for longer bucket life. The bucket cutting edge is pre-drilled to accept the optional bolt-on beveled (reversible) cutting edge, increasing the durability of the bucket edge.

Specs

Model SASB-84
Overall Width (in/mm) 84 / 2134
Bucket Depth (in/mm) 30 / 762
Upper Grapple Width (in/mm) 21 / 533
Length of Front Sweep Clamp (in/mm) 21.5 / 546
Degrees of Sweep 44
Grapple Opening (in/mm) 37.13 / 943
Bucket Material AR
Bottom Wear Strips Yes (3)
Optional Bolt-on Cutting Edge (3/4" x 8") 811870
Hose Routing Inside the Frame
Cylinder Pressure Rating (psi/bar) 3000 / 207
Flat-face Couplers Standard 1/2 / 13 Body
Mount Type "Universal Skid Steer"
Weight (lbs/kg) 853 / 387
Product No. 812570
