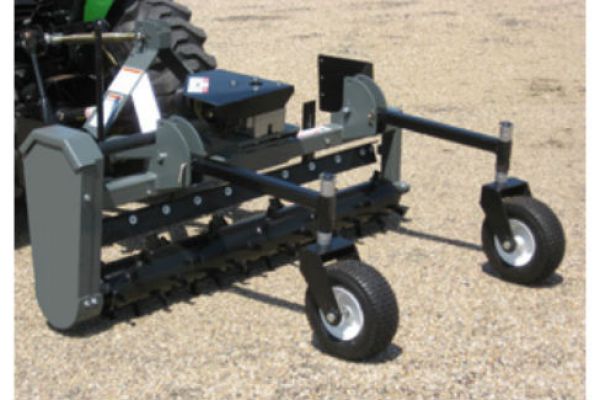

Call UsWorksaver PTC-525
25 Series PTC-525
Overview:
Get more done with a compact tractor when using one of our 25-Series Power Rakes designed for tractors of 24-40 HP. Standard equipment includes a #80 drive chain for dependable power transfer, PTO with slip clutch, dual flip-up gauge wheels, flip-up side shields for easy storage on the machine and adjustable material b... + Read More
Features
Specifications
| Model | PTC-525 |
| Mount Type | 3-pt Cat.I |
| Main Frame (in) | 3 x 3 x 3/16 |
| Overall Width (in/cm) | 68 / 173 |
| Working Width (in/cm) | 60 / 152 |
| Working Depth (in/cm) | 0-3.0 / 0-8 |
| Max. Angle | 20° L/R |
| Hydraulic Angle | Optional |
| Drive System | PTO |
| Rotor Drive | #80 Roller Chain |
| Chain Tensioner | Standard |
| Rotor Tooth | Carbide |
| Gauge Wheel | Dual |
| Flip-Up Side Shields | Standard |
| Material Control Bar | Adjustable |
| Weight (lbs/kg) | 755 / 343 |
| Product No. | 360800 |
