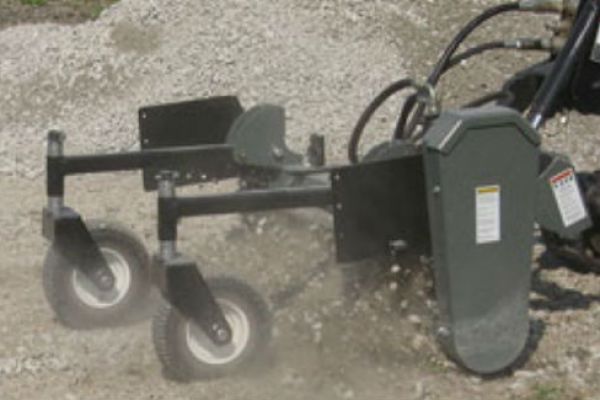

10 Series PXS-410
Overview:
Elevating productivity, the 10-Series Power Rakes for Mini / Compact Skid Steers features a #80 chain drive, flip-up side shields, dual gauge wheels, adjustable material bar and optional hydraulic angle.
As with all Power Rakes, bearing protectors and environmentally friendly dry chain case are standard equipment.
Features
Specifications
| Model | PXS-410 |
| Mount Type | Mini-SS |
| Main Frame (in) | 3 x 3 x 3/16 |
| Overall Width (in/cm) | 56 / 142 |
| Working Width (in/cm) | 48 / 122 |
| Working Depth (in/cm) | 0-3.0 / 0-8 |
| Max. Angle | 20° L/R |
| Hydraulic Angle | Â Optional |
| Drive System | Hydraulic |
| Rotor Drive | #80 Roller Chain |
| Chain Tensioner | Standard |
| Rotor Tooth | Carbide |
| Gauge Wheel | Dual |
| Flip-Up Side Shields | Standard |
| Material Control Bar | Adjustable |
| Weight (lbs/kg) | 524 / 238 |
| Product No. | 360600 |
