Call UsWorksaver PXS-405ST
05 Series PXS-405ST
Overview:

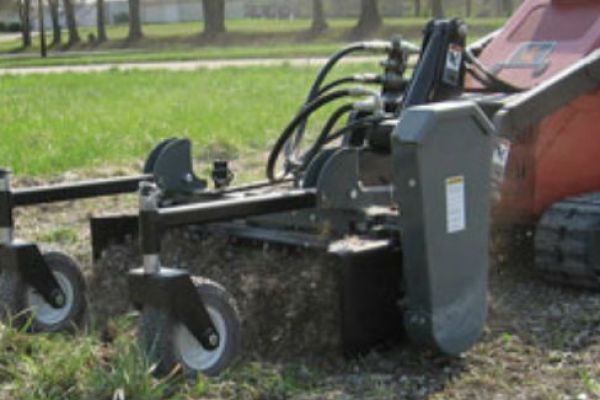

Designed for use on Mini / Compact Skid Steers, the hydraulically driven 05-Series offers economy and performance. Standard equipment includes a #60 chain drive, flip-up side shields and single center mounted gauge wheel - all supported by a 3" x 3" x 3/16" all-welded frame. As with all models, these Power Rakes featur... + Read More
Features
Specifications
| Model | PXS-405ST |
| Mount Type | Mini-SS |
| Main Frame (in/cm) | 3 x 3 x 3/16 |
| Overall Width (in/cm) | 56 / 142 |
| Working Width (in/cm) | 48 / 122 |
| Working Depth (in/cm) | 0-3.0 / 0.8 |
| Max. Angle | 20° L/R |
| Hydraulic Angle | N/A |
| Drive System | Hydraulic |
| Rotor Drive | #60 Roller Chain |
| Chain Tensioner | Standard |
| Rotor Tooth | 2" Sabre |
| Gauge Wheel | Single |
| Flip-Up Side Shields | Standard |
| Material Control Bar | 2-position |
| Weight (lbs/kg) | 483 / 219 |
| Product No. | 360520 |
