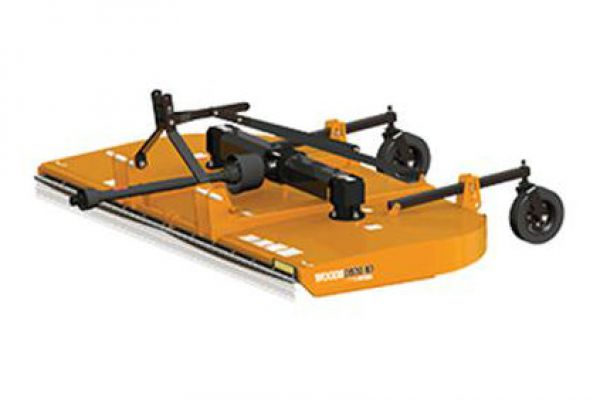

Call UsWoods MDS10.40 Mounted
Multi-Spindle Cutters MDS10.40 Mounted
Overview:
Since 1946, Woods has grown to become the undisputed mowing expert. This legacy began with development of the first tractor-mounted rotary cutter and continues today with unmatched product innovation and service.
Put our products to the test in your own back yard. Rugged, dependable and productive – Woods rotary cut... + Read More
Features
- 120-inch mounted dual-spindle rotary cutter
- PTO HP: 60 - 120
- 2-inch cutting capacity
- Smooth, sloped-top deck for easy water and debris shedding
- Variable wheel spacing
Specifications
| PTO Horsepower | 60 - 120 hp |
| Hitch category / type | Cat 2 & 3 / clevis |
| Cutting width | 120" |
| Cutting height | 2-12" |
| Cutting capacity | 2" |
| Gearbox horsepower rating | 120 hp center, 90 hp spindle |
| Blade tip speed | 16,700 fpm |
| Deck side depth | 10" |
| Deck thickness | 10 ga. (.135") |
| Overall width | 124" |
| Overall length | 110" |
| Approximate weight | 1,576 lbs |
| Blade dimensions | .5" x 4" |
| Wheel selection | laminated, severe duty new ag, foam filled new ag, 15" rims |
| Optional dual wheels - pull-type | no |
| Quick-hitch compatible | yes |
