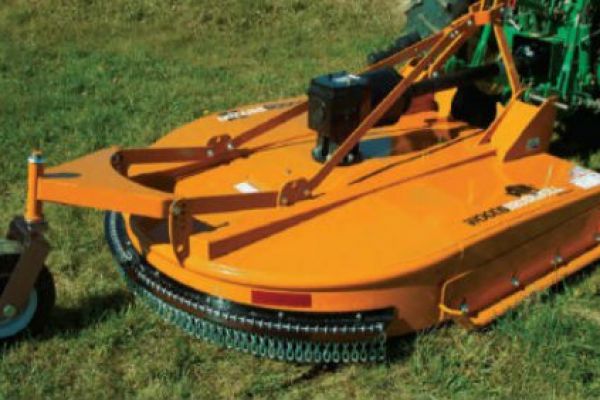

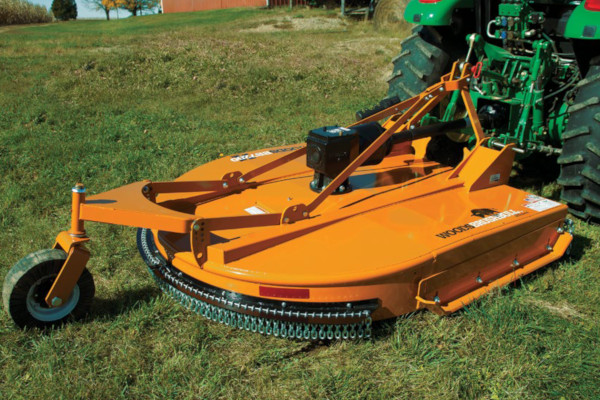

Woods BB8400X

Double tap to zoom



Features

  • 84-inch Single-Spindle Cutter
  • Three-point hitch: Cat 2 and 3
  • Tractor HP range: 65-200 hp
  • Cutting capacity up to 4-inches
  • Adjustable full length skid shoes
  • Standard blade ring
  • Special heavy-duty stump jumper
  • Optional baffle
  • Optional dual tail wheels
  • Extreme durability with a 3-piece deck plate welded to two 3" x 4" structural beams running the length of the deck, plus a 2-inch tubular rear bumper

Specifications

Cutting width 84"
Transport width 92.5"
Overall length 128"
Cutting height 2" - 12"
Approximate weight 1,800 lbs
PTO Horsepower 65 - 200 hp
Tractor PTO speed 540 rpm
Hitch Cat 1 & 2 / clevis
Safety Shielded Driveline Cat 5
Driveline protection slip clutch
Gearbox output shaft diameter 2.38"
Gearbox horsepower 150 hp
Blades (2) .5" x 4"
Blades composition heat treated alloy steel
Blade carrier round stump jumper
Blade mount system/pin diameter quick change blade pins / 1.5"
Number of spindles 1
Blade tip speed 14,250 fpm
Deck side depth 11.7"
Cutter baffles Optional
Tail wheel - laminated tire 4" x 16"
Tail wheel mount 4-point
Frame & deck support 3" x 4" full length structural beams
Rear bumper 2" tubular
Skid-shoes extreme duty replaceable
Cutter deck thickness 7 gauge
Side skirt thickness .25"
Cutting capacity 4"
