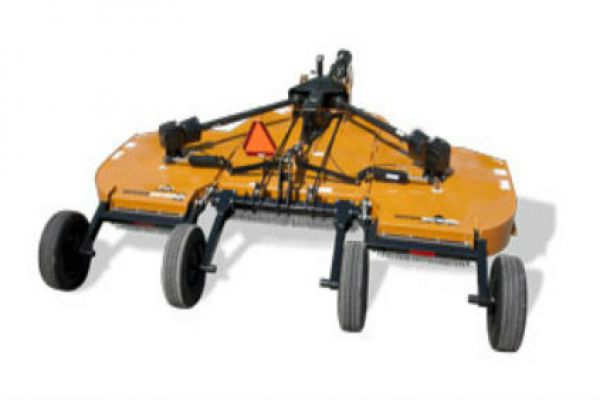

Woods BW180XHD PRO for sale at Coastal Tractor, California

Double tap to zoom

Woods BW180XHD PRO for sale at Coastal Tractor, California



Features

  • 15-foot Heavy-Duty Dual-Wing Cutter
  • High torque capacity and deep 7 gauge deck cuts more in less time
  • Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
  • Tractor HP range: 55-235 hp
  • Swivel clevis or optional pintel ring hitch
  • Cuts brush up to 3.5-inches in diameter
  • Side frame depth of 13 inches increases cut material capacity
  • Dual-wheels available on wings and center for extra flotation
  • Full-length, 1-inch wing hinge pin
  • Fully baffled deck for even distribution and a finer shred
  • Exclusive quick-change pins enable speedy blade changes in the field

Specs

PTO Horsepower 55-235 hp
Side frame depth 13"
Cutting width 180"
Cutting height 2" - 15"
Cutting capacity diameter 3.5"
Hitch swivel clevis; optional pintel ring
Transport width 96"
Overall width / length 190" / 205"
Deck type smooth, sloped
Deck thickness .179 (7 gauge)
Side frame thickness .25"
Hinge rod diameter 1" full length
Weight 4,900 lbs
Tongue weight 1,715 lbs
Main driveline rating Cat 6 CV or Cat 5 heavy 3 joint
Output shaft diameter 2.38"
Splitter / spindle gearbox hp 250 / 210 hp
Blade type .5" x 4" quick change blade pins, hi-lift, flat or shredder
Blade overlap 6"
Blade tip speed 540 rpm 16,000 fpm
Blade tip speed 1,000 rpm 16,000 fpm
Material flow system fully baffled deck
Stump jumper type standard round-welded
Wing flex up / down 90° up, 22° down
Suspension spring on cylinder / walking tandem spring arms
Wheel type 15" rims, 21" laminated, 24" or 29" used aircraft tires or foam-filled aircraft tires
Wing leveling adjustment easy adjust turnbuckle
Shielding rubber belting, single or double chain
