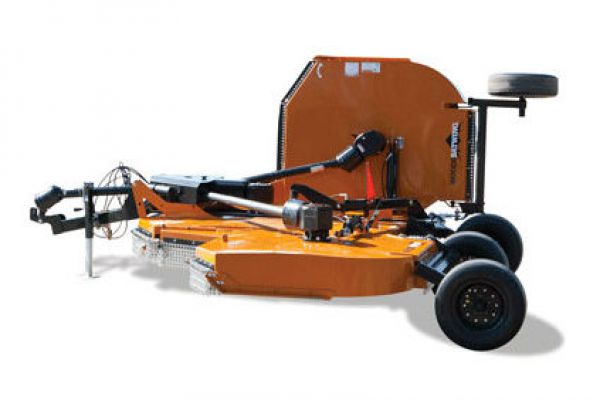

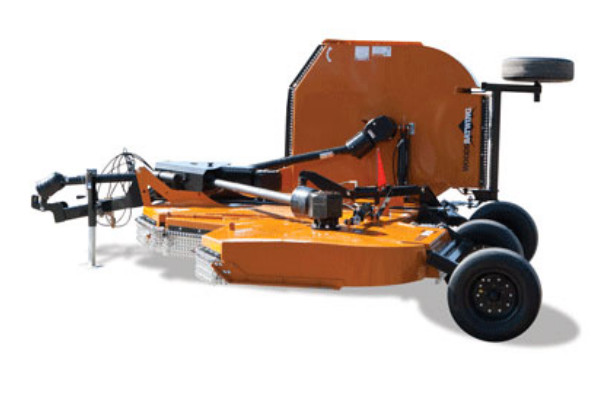

Woods BW180X for sale at Coastal Tractor, California

Double tap to zoom

Woods BW180X for sale at Coastal Tractor, California



Features

  • 15-foot Standard-Duty Dual-Wing Cutter
  • Main driveline: Cat 6 CV or Cat 5 heavy 3 joint
  • Tractor HP range: 45-160 hp
  • Dual-wheels available on wings and center for extra flotation
  • Cuts brush up to 2.5-inches in diameter
  • Wings fold up independently and lock securely for a narrow 96-inch transport width
  • Side frame depth of 13 inches increases cut material capacity
  • Fully baffled deck for even distribution and a finer shred
  • Exclusive quick-change pins enable speedy blade changes in the field

Specs

PTO Horsepower 45-160 hp
Side frame depth 13"
Cutting width 180"
Cutting height 2" - 15"
Cutting capacity diameter 2.5"
Hitch clevis
Transport width 96"
Overall width / length 190" / 205"
Deck type smooth, sloped
Deck thickness .135"
Side frame thickness .25"
Hinge rod diameter 1" full length
Weight 4,100 lbs
Tongue weight 1,310 lbs
Main driveline rating Cat 6 CV or Cat 5 heavy 3 joint
Output shaft diameter 2"
Splitter / spindle gearbox hp 160 / 120 hp
Blade type .5" x 4" quick change blade pins, hi-lift, flat or shredder
Blade overlap 6"
Blade tip speed 540 rpm 15,000 fpm
Blade tip speed 1,000 rpm 16,000 fpm
Material flow system fully baffled deck
Stump jumper type standard round-welded
Wing flex up / down 90° up, 22° down
Suspension spring on cylinder
Wheel type 15" rims, 21" laminated, 24" or 29" used aircraft tires or foam-filled aircraft tires
Wing aeveling adjustment easy adjust turnbuckle
Shielding rubber belting, single or double chain
