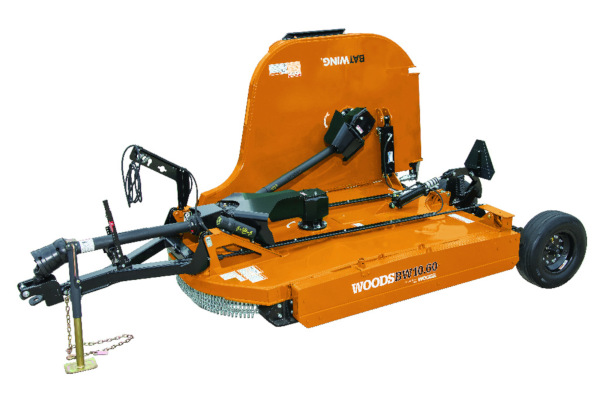

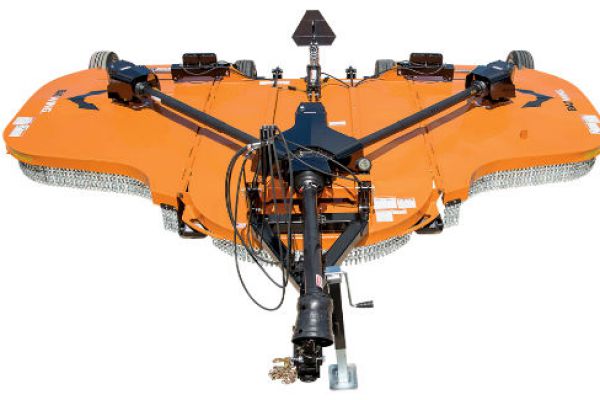

Woods BW10.60 for sale at Coastal Tractor, California

Double tap to zoom

Woods BW10.60 for sale at Coastal Tractor, California



Features

  • Ideal for cutting tall brush and trees up to 4 inches in diameter
  • Patented driveline lift assistance system makes it easy to hook up
  • Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
  • New gearbox seal technology reduces leaks and downtime
  • A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine
  • Woods’ exclusive greasable Quick-change blade pins allow blade changes from the top of the deck, in the field
  • Strategically placed, welded baffles cut and distribute debris evenly
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Specs

Tractor PTO HP 55-275
Hitch Type Swivel clevis
Cutting Height (in) 2 to 15
Cutting Capacity Diameter (in) 4
Cutting Width (in) 126
Blade Tip Speed (fpm) 15,700 at 540 rpm; 16,000 at 1,000 rpm
Weight (lbs) 4,400
Deck Thickness (in) .179 (7 ga)
Side Skirt Thickness (in) 0.25
Side Skirt Depth (in) 13
Transport Width (in) 96
Wing Flex Up/Down (degrees) 90 up, 22 down
Driveline Rating CAT 6 CV main, CAT 4 wing
Splitter/Wing Gearbox Rating (hp) 275 / 225
*Gearbox horsepower ratings listed are based on field testing.
Output Shaft Diameter (in) 3
Tongue Weight (lbs) 1,350
Wheel Options 15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft
Options Double row chain shielding; dual wheels; LED lights; shredding kit; deck ring; spring axle; full walking tandem
Suspension Single spring on center wheel yoke or spring-loaded axles
Blade Overlap (in) 6
Blade Dimensions (in) .5 x 4
Cutting Area Shielding Standard chain shielding
