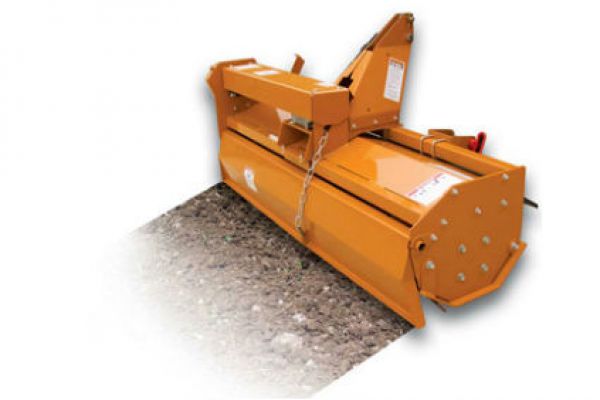

Woods TS/TSR52

Double tap to zoom



Features

  • 52-inch tilling width
  • Tractor HP range: 18-30 hp
  • Three-point hitch: Limited Cat 1 and 1
  • Available as either forward or reverse rotation
  • Standard slip clutch driveline protection
  • Rugged steel tines can till seven inches into tough ground
  • Specifically designed for subcompact tractors
  • Perfect tool for estate-size properties

Specifications

Tractor hitch Limited Cat 1 & 1
Tractor Engine HP 18 - 30 hp
Working width 52"
Max. tilling depth 7"
Weight 426 / 435 lbs
Drive type #80 chain
Num. Tines/ Num. Flanges 24 / 6
Tines per flange 4 C-type (6 optional)
Rotar shaft rpm 240 rpm
PTO driveline protection slip clutch
Tractor PTO speed - rpm 540 rpm
Gearbox housing cast aluminum
Gearbox drain plug yes
Convertible side shift (right) 11.5"
Quick hitch compatible yes
