Call UsWoods RT48.30 / RTR48.30

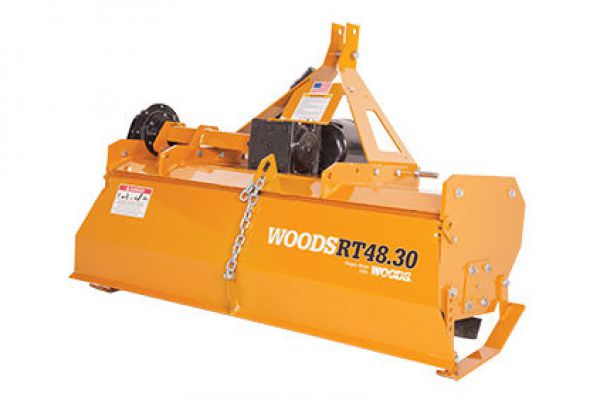

Rotary Tillers RT48.30 / RTR48.30
Overview:
Woods’ line of rotary tillers couples the best design features with outstanding performance for the discerning user. Our 30- and 40-series received the ASABE award for outstanding Innovation in Product or Systems Technology 2017.
• 30- and 40-series models available as either forward or reverse rotation
• On initia... + Read More
Features
- 48-inch working width
- Tractor HP range: up to 35
- Three-point hitch: Cat 1
- Avaialble in forward or reverse rotation
- Tapered tailgate removes furrow for a finished seedbed
- Adjustable skid shoes for easy depth control
- Integrated parking stand for easy storage and hook-up
- Designed for use with compact tractors
Specifications
| Tractor PTO HP | up to 35 hp |
| Tractor hitch | Limited Cat 1 and 1 |
| Working width | 48" |
| Overall width | 57" |
| Weight | 484 lbs |
| Max. tilling depth | 7" |
| Drive type | gearbox |
| Number of Tines/ Number of Flanges | 24 / 6 |
| Number of times per flange | 4 C-type |
| Rotor Speed | 210 |
| Tractor PTO speed | 540 |
| PTO driveline protection | slip clutch |
| Gearbox housing | heavy-duty cast iron |
| Gearbox drain plug | yes |
| Hopper capacity | 3" (left) |
| Quick-hitch compatible | yes |
| Duty Class | Standard-duty |
