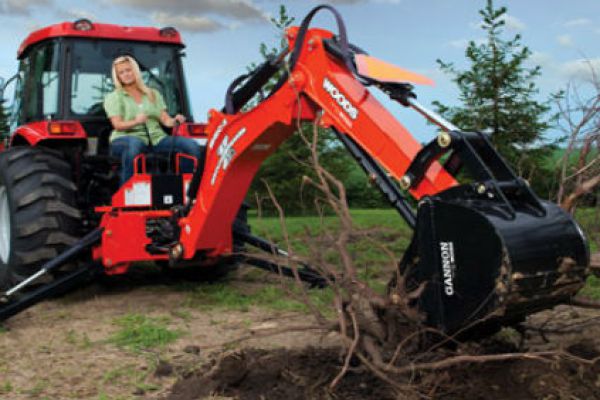

Woods BH90-X

Double tap to zoom



Features

  • 9-foot maximum digging depth
  • Tractor HP range: 30-70 hp
  • Bucket widths from 12 to 36-inches
  • Durable, heavy-duty boom, dipper stick and dual swing cylinders
  • Heavy-duty cylinders to endure greater force
  • “Box section” design adds strength without weight, increasing lifting power
  • Designed to endure the most rigorous commercial digging, with years of worry-free service.
  • Optional mechanical or hydraulic thumb to easily pick up bulky materials
  • Available in black or paint colors to match most tractor brands

Specifications

Tractor Engine HP 30 - 70 hp
Digging depth - 2' flat 109"
Digging depth - 8' flat 91"
Reach from swing pivot 145"
Loading height 89"
Transport height 97"
Swing arc 180°
Bucket rotation 180°
Stabilizer spread (up) 66"
Stabilizer spread (down) 100"
Relief pressure 2,500 psi
Bucket digging force 4,180 / 5,070 lbs*
Dipperstick digging force 2,900 lbs
2-cylinder swing standard
Swing speed control standard
Bucket widths 12" - 36"
Bolt-on vs. pin-on teeth pin-on
Thumb optional
Flip-over stabilizers standard
Stabilizer street pads optional
PTO pump kit optional
Clean-up (ditching) bucket 36"
Cemetery bucket 36"
Quick-attach bucket optional
