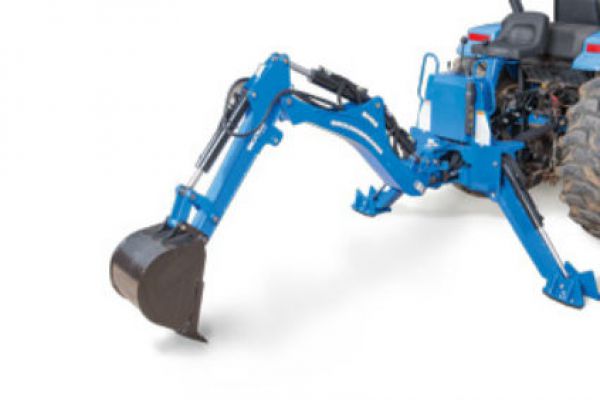

Woods BH75

Double tap to zoom



Features

  • 7½-foot maximum digging depth
  • Tractor PTO HP range: 20-40
  • Bucket options: 9”, 12”, 16”, 18”, 24”
  • Swing cushioning provides smooth, superior control – even at the ends of the swing arc
  • Bolt-on bucket teeth are durable and easy to replace
  • Greasable end pins are simple to maintain and extend work life
  • High ramp angle and ground clearance make transporting easy
  • Sub-frame or 3-point hitch mounts are compatible with most loaders and undermount mowers
  • Available in black or paint colors to match most tractor brands
  • Optional mechanical thumb adds versatility to any job

Specifications

Tractor Engine HP 25 - 50 hp
Tractor PTO 20 - 40 hp
Digging depth - 2' flat 90"
Digging depth - 8' flat 70"
Rear bumper 119"
Loading height 73"
Loading Reach 46"
Transport height 74"
Transport length 45"
Approx. Shipping Weight (w/o Bucket) 842 lbs
Swing arc 180°
Bucket rotation 180°
Leveling Angle 10°
Relief pressure 2,470 psi
Bucket digging force 3,380 lbs
Dipperstick digging force 2,230 lbs
Bucket widths 9", 12", 16", 18", 24"
Thumb Optional mechanical
Flip-over stabilizers Yes
Stabilizer street pads Optional
PTO pump kit Optional
