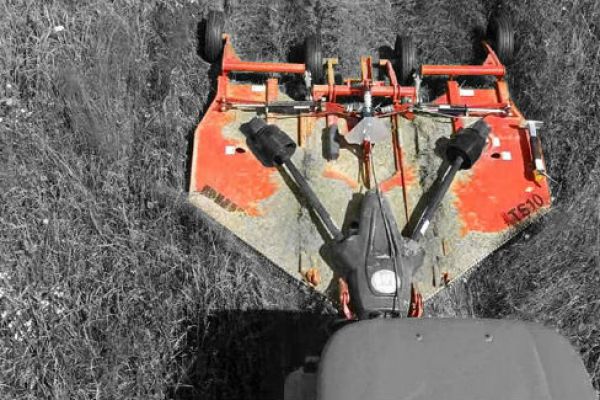

Rhino TS10

Double tap to zoom



Features

  • Fits through gates as narrow as 8'
  • 2" cutting capacity
  • Walterscheid EZ-Loc collar makes hookup easy
  • Replaceable skid shoes
  • Average mowing time of 4 MPH
  • Heavy-duty turn buckles

Specifications

Model TS10
Cutting Width 120''
Transport Width 93''
Transport Height 68''
Overall Width 126''
Overall Length 162''
Cutting Height * 1'' - 15''
Height Adjustment 3 1/2'' x 8'' Hyd Cylinder
Jack Stand Std
Hitch Pull Type, Parallel Clevis
Blade Carrier Infinity - Steel
Blades 1/2'' x 3'' High Lift
Blade Overlap 6''
Tractor PTO HP Range 25 - 60
Gearbox Oil (85W-140) Factory Filled Lucas Oil
Output Shaft Diameter 1 9/16''
Blade Tip Speed - Center 540 RPM 13,028
Blade Tip Speed - Wing 540 RPM 13,680
Cutting Capacity 2''
Driveline ASABE - Main CAT 4 CV
Driveline ASABE - Wing CAT 3 SC
Deck Thickness 12 Ga
Side Skirt 1/4'' x 10''
Tires & Wheels (4 or 6) Laminated, Foam Filled Used Airplane, Rhino Trax Foam Filled
Wing Lift 2'' x 14'' Hyd Cylinder
Wing Flex (Degrees) 90° Up / 22° Dn
Safety Tow Chain Std
Safety Deflectors Rubber Deflectors or Single Chain Guards
Tongue Weight 720 lbs
Weight (Approx) 2,190 lbs

* Cutting Height dependent on Tire Size.
TS10 is NOT intended for Commercial or Government use.
