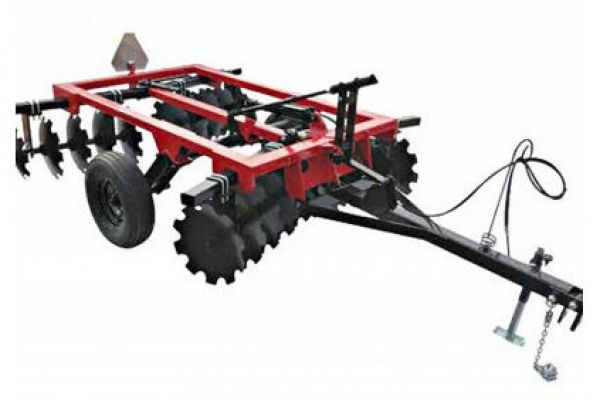

Rhino DHP8 for sale at Coastal Tractor, California

Double tap to zoom

Rhino DHP8 for sale at Coastal Tractor, California



Features

  • Clevis & Hole Style Hitches for Reliable, Low Maintenance, Quick Hitching.
  • Greaseable, Triple-Lip, Sealed Ball Bearings, ensure long life!
  • Optional 20 or 22” Blades for Jobs of any Size!
  • Several Horsepower Options to Fit Farms of any Size!

Specs

Model DHP8
Tractor Drawbar HP 40-65
Hitch Type Pull-Type with Clevis and Hole for 1¼'' Pin
Approx. Transport Width 8'-10''
Max Cultivation Width 8'-6''
Main Frame Width 60''
Approx. Weight Per Disc (lbs) 95-114
Disc Blade Size & Type 20'' or 22'' Notched
Disc Spacing 7.5'', 9'', or Combination
Disc Bearing Type Greaseable Triple-Lip Sealed Ball Bearing
Number of Bearings 8
Forward Gang Angle Adjustment 15°, 16.5°, 18°, 19.5°, 21°
Rear Gang Angle Adjustment 12°, 13.5°, 15°, 16.5°, 18°
Hitch Frame Construction 4'' x 4'' x ¼'' Tubing
Slide Frame Construction 4'' x 4'' x ¼'' Tubing
Gang Arm Construction 4'' x 4'' x ¼'' Tubing
Gang Axles 1⅛''-Square High-Carbon Steel
Front to Rear Leveling System Manual Crank Adjustment
Depth Control Hydraulic Cylinder (3½'' x 8'' ASABE)
Transport Tires & Wheels (2)-9.5L x 15 w/5-Bolt Wheels
Parking Jack Standard
Options Disc Scrapers, Dual-Transport Wheel Kit
