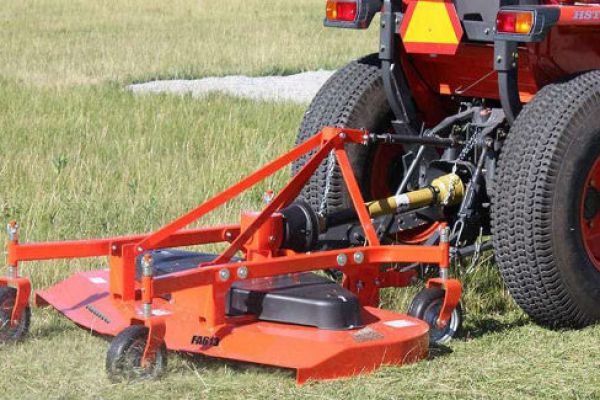

Rhino FA-513

Double tap to zoom



Features

  • Three-Blade Design With 1” Blade Overlap Reduces the Possibility of Streaks and Skips in Your Yard.
  • Available in 5’, 6’, and 7’ Widths to Provide the Best Match for Your Yard and Tractor.
  • Top and Bottom Hitch Points "Float," Allowing the Mower to Ride With the Terrain.

Specifications

Model FA-513
Mowing Width 59''
Overall Width 63''
Blade Number 3
Cutting Height 3/4'' - 4 1/4''
Height Adjustment Bushing
Hitch CAT 1
Blades 6mm x 60mm
Blade Overlap 1''
PTO HP Required 16 - 40
Gearbox Ratio 01:02.8
Blade Tip Speed 14,070 FPM
Cut Capacity (Max.) Grass
Driveline Size Cat 3 ASAE
Drive Belt Selection 'B''
No. of Drive Belts 2
Deck Thickness 4mm (.157'')
Tire & Wheels Solid
Anti-Scalp Roller Standard
Discharge Rear
Approx. Weight (lbs) 432 lbs.
