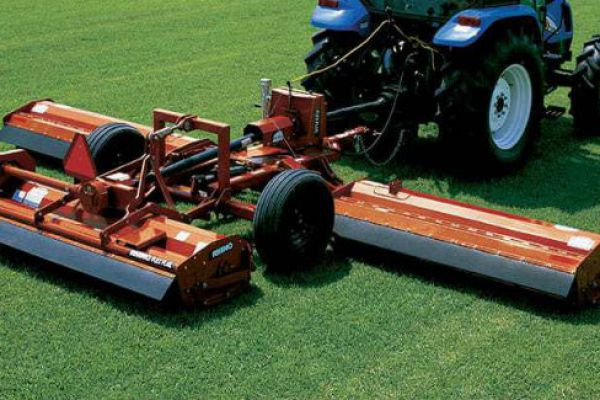

Rhino FX17

Features
AUTOMATIC WING TRANSPORT LOCKS
Standard for greater safety in transport or while servicing the blades. The transport locks can be released from the tractor seat for greater convenience.
HYDRAULIC WING FOLD
Standard for greater operator convenience.
SUPER-HEAVY DUTY MOWING HEADS
Provide long lasting durability. The all-welded hood and thick end plates are reinforced front and rear for outstanding strength.
LOW PROFILE WING
Allows mowing under tree limbs and low hanging obstacles for a more complete mowing job.
CUTTING HEIGHTS
A cutting height range of 1"-6" is available by adjusting the rear roller.
DOLLY WHEELS
Heavy-duty pneumatic 11L-15 flotation dolly wheels provide high load carrying capacity and excellent flotation.
WING FLEX RANGE
An operating Wing Flex Range of 30 degrees up and 30 degrees down allows mowing of uneven terrain and adds to the versatility of the Flex Flail.
FINE OR COARSE CUT KNIVES
A choice of a fine or coarse cut rotor shaft is available. Fine cut is ideal for turf farms where an extremely clean, smooth cut is important. A coarse cut rotor is designed for general mowing applications.
TRANSPORT WIDTH
A transport width of 96" allows easier and safer travel on narrow roads.
MOWING HEAD
Each mowing head features a 10 gauge hood designed to deflect cut material downward. This provides two main benefits. The first benefit is any foreign object is thrown down instead of out reducing the risk of injury or damage compared to conventional rotary mowers. Secondly, more of the grass clippings are thrown down into the turf instead of out on top of the remaining turf reducing the risk of yellowing.
ADDITIONAL FEATURES INCLUDE:
Full length rear roller to help prevent scalping
Low horsepower requirements
Provides excellent results in Zoysia and Bermuda Grass
Flail mowing technology assures even disbursement of clippings, and no windrowing. The 8900 FPM blade tip speed and forward blade rotation provides a manicured cut.
Wide cutting widths help make short work of big mowing jobs. The FX21 can mow 10.18 acres per hour at 4MPH. (Assumes no overlap, turns, or stops.)
Safer operation around people, animals, and property is an added benefit provided by the design of the hood. Foreign objects hit by blades are discharged downward.
The pull-type design means your tractor is available for other uses. The mower is not mounted to the tractor and attachment is quick and easy.
A Category 4 constant velocity main driveline is standard for smooth operation through turns.
150 HP Main Gearbox delivers power to the wings.
Shielded drivelines and belts are standard for greater operator safety.
PROVEN DESIGN AND DEPENDABILITY
Super heavy-duty flail mower heads
Reversible, self-cleaning knives turn at rate of 8900 FPM
Near mulch-like cutting
Even disbursement and rapid decomposition of clippings
Deflects objects down (not out) for safer operation
Specifications
Model | FX17 |
Cutting Width | 198'' |
Overall Width | 204'' |
Overall Length | 156'' |
Transport Width | 96'' |
Transport Height | 88'' |
Operating Wing Flex Range | 30 Degrees up / 30 Degrees Down |
Cutting Height Range | 1'' - 6'' |
Cutting Capacity | Grass |
Horsepower Required (540 RPM) | 40 HP |
Decks | 2 - 62'', 1 - 88'' |
Blade Tip Speed | 8,900 FPM |
Number of Blades Per Head | 62'' - 76 Pair (Fine) / 36 Pair (Coarse 88'' - 108 Pair (Fine) / 44 Pair (Coarse |
Blade Rotation | Forward |
Mower Head Overlap | 6'' |
Cuttershaft Diameter | 4 1/2'' |
Cuttershaft Bearings | 1 15/16'', Slef-Aligning Greaseable |
Roller Diameter | 6'' |
Main Drive Belt | 5 Groove, Power Band |
Hood Thickness | 10 Ga |
End Plate Thickness | 5/16'', (3/8'' Inside Wings) |
Main Driveline | CAT 4, Constant Velocity |
Wing and Rear Driveline | CAT 3 & CAT 4 Respectively |
Transport Wheels | 11L-15 |
Transport Wheels Width | 92'' |
Automatic Wing Transport Lock | Std |
Replaceable Skid Shoes | Std |
Rear Deflectors | Std |
Weight (Approx.) | 4,450 lbs |
