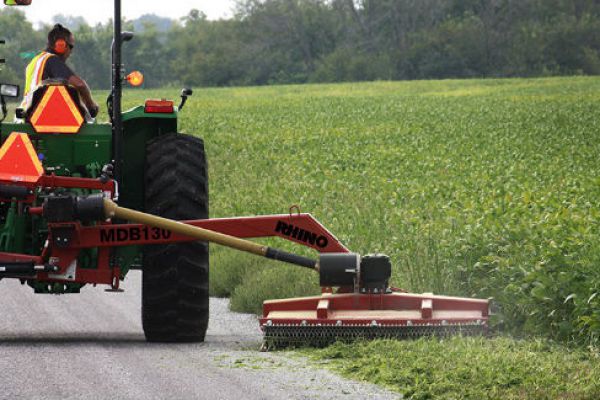

Rhino MDB130

Double tap to zoom



Features

  • 130” Horizontal Reach
  • Available in 540 or 1000 RPM
  • 60" Cutting Width
  • Slip Clutch Protection
  • 2" Cut Capacity

Specifications

Model MDB130
Cutting Width 60''
Transport Width 60''
Overall Width (Skid to Skid) 69 1/2''
Overall Length (Guard - Guard) 83 1/4''
Cutting Height 1 1/2'' - 12''
Hitch CAT 2 Std & CAT 3 Std
Blade Carrier Infinity - Cast
Blades 1/2'' x 4''
Blade Rotation Counter Clockwise
PTO HP Required (Min) 60 w/25% of Weight on Front Wheels
Min Tractor Weight 5,000 lbs
Gearbox HP - Center 100
Gearbox HP - Deck 130
Tractor PTO Speed 540 RPM 1000 RPM
Drive Type Mechanical
Mechanical Breakaway Std
Blade Tip Speed - 540 RPM 13,904
Blade Tip Speed - 1000 RPM 14,128
Horizontal Reach (Max) 130''
Cutting Capacity (Max) 2''
Driveline Size CAT 4
Overload Protection Slip Clutch
Deck Thickness 10 Ga
Side Skirt 7 Ga x 9 1/8''
Range of Head Movement 40 Degrees Up/Down
Skid Shoes Std
Safety Guarding Single Clains
Weight (Approx) 1,900 lbs.
