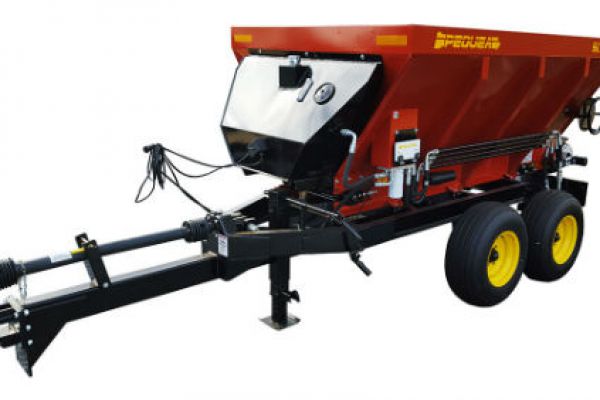

Pequea SL-6

Features
- Adjustable Endgate 4 Optional Attachments
- Rawson 6:1 Hydraulic Drive Gearbox
- Manifold with Flow Control Cleans up Hydraulics
- Speed Control (Optional) Full Electronic Control
Specifications
Specifications | SL-6 |
Overall Height | 81" |
Overall Width | 73" |
Overall Length | 17' 11" |
Hopper Width (Top) | 70" |
Hopper Length | 9' |
Floor Width | 23-3/8" |
Capacity | 6 cu yd (Heaped) |
Payload | 6 ton (12,000 lb) |
Empty Weight | 4,000 lb |
Flow Control | Adjustable Flow Control for Conveyors and Spinners |
Floor & Chain | 667X Chain on 3/4" Poly Tongue and Groove Floor |
Axle | Heavy Duty Tandem Walking Beam |
Tire and Wheel | 12.5L x 15 12 Ply |
Spinner Disc Diameter | 25" |
Spinner Disc Thickness | 1/4" |
