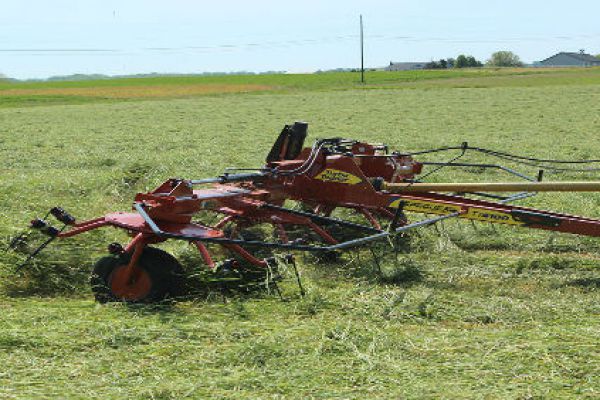

Turbo Tedders TT4101
Overview:
With an 18' 2" working width, Pequea's TT4100 is one of the widest 4-rotor tedders available. It offers all the same features as TT6100: front tilt cylinder, tubular tine arms, finger jointed pivots, and real 4 bolt tires. The simple and reliable hydraulic system features two cylinders to quickly fold the tedder into t... + Read More
Features
Specifications
| Working Width | 18' 2" |
| Transport Width | 9' 2" |
| Overall Length | 9' 8" |
| Number of Rotors | 4 |
| Tine Arms per Rotor | 7 |
| Linkage | Trailed |
| Rotor Tire | 18.5 x 8 |
| Weight | 1,350 lb |
| Hydraulic Requirement | 1,000 psi |
| PTO Power Requirement | 30 hp |
| Rotor Gearbox | Enclosed Grease |
| Center Gearbox | Oil Bath |
| Tine Arm Material | 1" Schedule 80 Pipe |
| Rotor Spindle Wheel Hub | 4-Bolt with Tapered Bearings |
| Transport Lights | N/A |
