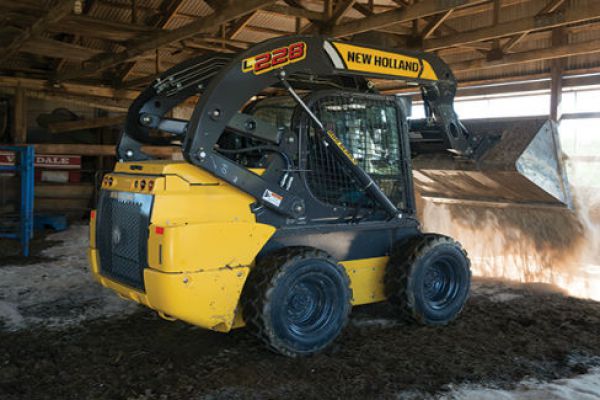

RESPONSIVE HYDRAULICS You can expect fast cycle times from the reliable hydraulic system. The in-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional high-flow hydraulics on the L218, L220, L221, L228, L234, C227, C232,C238 to run attachments hour after hour. The Spring Applied Hydraulic Release (SAHR) parking brake can be released or applied by the press of a button and is automatically applied when machine is shut off.
FAST TRAVEL The 200 Series dual-range transmission can provide travel speeds in excess of 11 mph (8 mph on CTLs) to save time on and between job sites. It is standard on the L220, L221, L228, L234 and all CTLs.
FPT /F5H FL463A*F001
Bore/stroke, in (mm)
3.9 x 4.3 (99 x 110)
Displacement, in3 (L)
Turbocharged Aftercooled with external EGR
Horsepower per SAE J1349 Gross hp (kW)
74 (55) @ 2500 rpm
Horsepower per SAE J1349 Net hp (kW)
68 (51) @ 2500 rpm
Peak torque, lb-ft (Nm)
232 (314) @ 1400 rpm
Travel speed, low range, mph (km/h)
Travel speed, high range (optional), mph (km/h)
Bucket hinge pin, in (mm)
Top of ROPS, in (mm)
Bottom of level bucket, fully raised, in (mm)
Overall length without attachment with coupler, in (mm)
