Features

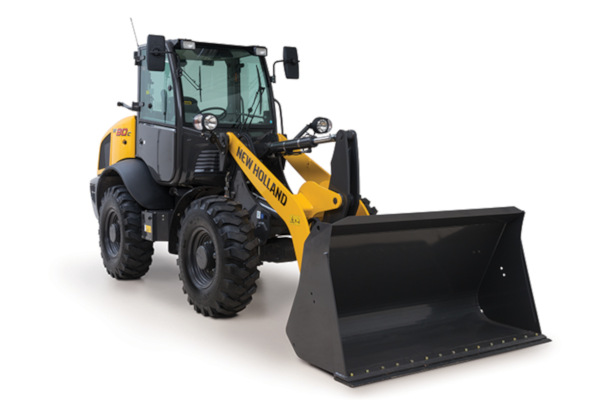

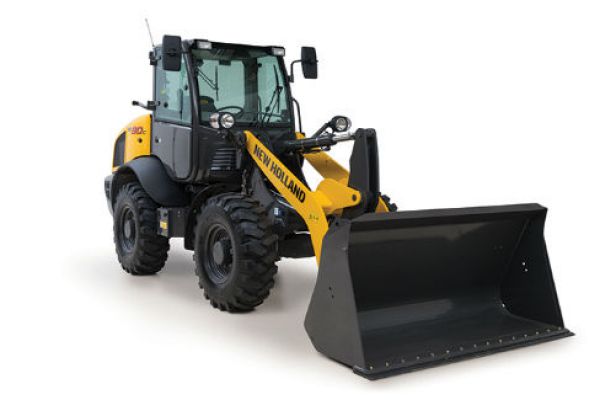

AT HOME IN TIGHT SPACES AND IN TOUGH TERRAIN
New Holland compact wheel loaders do more than load. With dependable engine and hydraulic power and a choice of buckets and attachments, you can easily scrape, grade, haul and more.
Rugged, effective Z-bar design
Z-Bar linkage design provides maximum breakout force, digging and lifting power for high-production load-and-carry applications. For applications where self-leveling is needed, like forklift work, consider the W50C TC Tool Carrier model.
Increased stability for fast, confident operation
A stable compact design allows you to work and maneuver easily in restricted spaces. A lower machine height and lower center of gravity increases the stability of New Holland compact wheel loaders so you can lift and move larger loads, travel smoothly and quickly, and operate with more confidence.
Spacious comfort and smooth control
The roomy cab incorporates a standard LCD display and natural, ergonomic controls.
Fast servicing
Fast, ground-level access to maintenance points and long service intervals reduce the time your operators spend on routine maintenance tasks.
Specs
Engine
| Model | F5HFL463A*F004 |
| Horsepower, gross, hp (kW) | 74 (55) |
| Horsepower, net, hp (kW) | 70 (52) |
| Rated rpm | 2500 |
| Torque, net (SAE J1349) | 227 (308) |
| Displacement, cu in (l) | 3 |
Transmission
| Travel speed, turtle, mph (km/h) | 3 (5) |
| Travel speed, rabbit, mph (km/h) | 12 (20) |
| Travel speed, high speed (option), mph (km/h) | 21 (33) |
Hydraulics
| Drivetrain Pump flow @ 2500 rpm, gpm (lpm) | - |
| Loader Pump flow @ 2500 rpm, gpm (lpm) | 37 (140) |
| Main relief pressure, psi (bar) | 3335 (230) |
Performance - Bucket with quick coupler
| Bucket capacity heaped, cu yds. ( m³) | 1.31 (1.0) |
| Bucket capacity struck, yd. (m) | 1.2 (0.8) |
| Breakout force, lbs. (kg) | 13,927 (6317) |
| Static tip load straight, lbs. (kg) | 7372 (3344) |
| Static tip load full turn, lbs. (kg) | 6266 (2842) |
| Operating weight, lbs. (kg) | 13,184 (5980) |
| Dump height, ft. in (mm) | 105” (2687) |
| Dump reach, in (mm) | - |
Dimensions
| Overall length | 222” (5684) |
| Wheelbase | 88” (2225) |
| Height to top of ROPS/Cab | 106” (2680) |
| Dump reach at full height @ 45° | 105” (2687) |
| Bucket reach @ 7’ and 45° dump | 33” (845) |
| Dump clearance at full height @ 45° | - |
| Hinge pin height | 132” (3395) |
| Dig depth below grade | 3” (84) |
| Ground clearance under axle | 15” (370) |
| Width over tires | 73” (1860) |
| Bucket rollback at carry | 45° |
| Bucket rollback fully raised | 55° |
| Turning radius | 157” (3987) |
| Articulation angle, from center | 40° |
