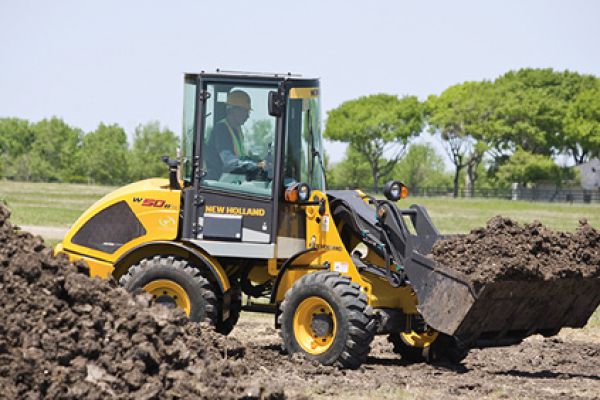

New Holland W50B TC (Prior Model) / NOT AVAILABLE

Double tap to zoom



Features

PRECISE CONTROL AND LOAD PLACEMENT.
New Holland compact wheel loaders provide a combination of increased versatility, increased comfort and control so you get the job done more quickly and efficiently. SMART precise load control and speed control improves operating efficiency. And these wheel loaders do much more than load. With big engine and hydraulic power and a choice of buckets and attachments, you can scrape, grade, haul and more.

Specifications

Engine


Model Tier III certified FPT F5C
Horsepower, gross, hp (kW) 54 (41)
Horsepower, net, hp (kW) 50 (38)
Rated rpm 2.300
Torque, net (SAE J1349) 162 lb-ft @ 1400
Displacement, cu in (l) 195 (3 11)
Aspiration Natural



Transmission






1st Gear, mph 3.1
2nd Gear, mph 12.4
High travel speed (HTS) option engaged, mph. -





Hydraulics




Pump capacity, gpm (lpm) 13.7 (52)
System relief pressure, psi 3,625





Performance - Bucket with Quick Coupler




Bucket capacity heaped, cu yd ( m³) .92 (.70)
Bucket capacity struck, yd (m) .73 (.56)
Breakout force, lbs (kg) 8,386 (3804)
Static tip load straight, lbs (kg) 7,377 (3346)
Static tip load full turn, lbs (kg) 6,489 (2944)
Operating weight, lbs (kg) 10,173 (4615)
Dump height, ft in (mm) 8’ 3” (2529)
Dump reach, in (mm) 33 (825)





Dimensions




Overall length 17′ 7″ (5360 mm)
Wheelbase 85.9″ (2182 mm)
Height to top of ROPS/Cab 8′ 10″ (2710 mm)
Dump reach at full height @ 45° 34″ (825 mm)
Dump reach @ 7′ 3′ 10″ (1172 mm)
Dump clearance at full height @ 45° 8′ 3″ (2529 mm)
Hinge pin height 10′ 8″ (3243 mm)
Dig depth below grade 3.6″ (92 mm)
Ground clearance under axle 13″ (330 mm)
Width over tires 6′ 1″ (1841 mm)
Bucket rollback at carry 52°
Bucket rollback fully raised 54°
Turning radius 12′ 7″ (3847 mm)
Articulation angle 41˚
