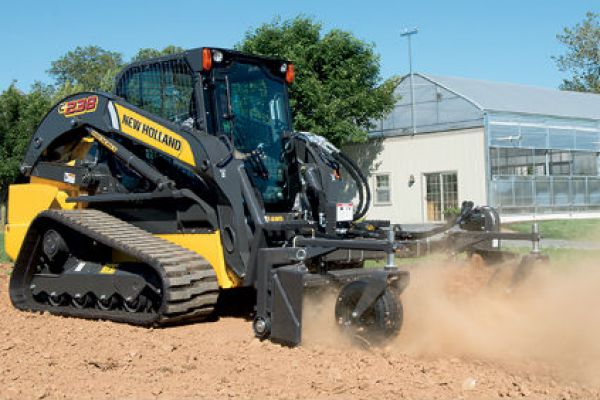

When you need a reliable workhorse to stand up to a variety of demanding applications, turn to the 200 Series compact track loaders from New Holland. These models hold fast to steep slopes and move easily through muddy or sandy terrain to complete jobs quickly and efficiently.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
New Holland’s patented Super Boom® vertical lift geometry provides maximum reach at the top of the lift curve, making it perfect for loading materials over the side of trucks and placing load in the center of the vehicle.
A STABLE RIDE AND PLENTY OF TRACTION Dozer-style undercarriage allows 200 Series compact track loaders to take command in muddy or sandy terrain, as well as on slopes. The simple, rigid-track frame offers greater durability and easier maintenance compared to suspension-track systems.
SUPERIOR COMFORT New Holland knows a comfortable operator is more productive. That’s why New Holland designed a cab with superior comfort and convenience and incorporates it into every 200 Series skid steer and compact track loader model.
No matter which model you choose, you get a cab that’s one of the widest in the industry, with more head room and shoulder room and joystick controls that come naturally to your fingertips.
UNMATCHED VISIBILITY Visibility is a significant advantage when you choose a New Holland compact track loader. A low threshold to the front, a large rear window, large screen openings to the side and a see-through area on the cab roof assure you have a clear view in all directions.
MAINTENANCE MADE EASY-UNRIVALED ACCESS When service is easy, it’s more likely to get done, so you can reach all daily maintenance checkpoints by opening the rear hood and door. The convenient New Holland flip-top cab allows you to tilt the entire cab assembly forward, if necessary, for complete access to your machine components.
EASY HYDRAULIC HOOK-UP Connect under pressure (CUP) hydraulic fittings are standard equipment for simple hydraulic hook-up of attachments. By pushing on the fitting, you release hydraulic line pressure in both machine and attachment. (Optional High-Flow Auxiliaries shown)
FPT / F5BFL413E*B002
Bore/stroke, in (mm)
3.9 x 4.3 (99 x 110)
Displacement, in3 (L)
Turbocharged Aftercooled with external EGR
Horsepower per SAE J1349 Gross hp (kW)
90 (67) @ 2500 rpm
Horsepower per SAE J1349 Net hp (kW)
84 (63) @ 2500 rpm
Peak torque, lb-ft (Nm)
282 (383) @ 1400 rpm
Travel speed, low range, mph (km/h)
Travel speed, high range (optional), mph (km/h)
Bucket hinge pin, in (mm)
Top of ROPS, in (mm)
Bottom of level bucket, fully raised, in (mm)
Overall length without attachment with coupler, in (mm)
