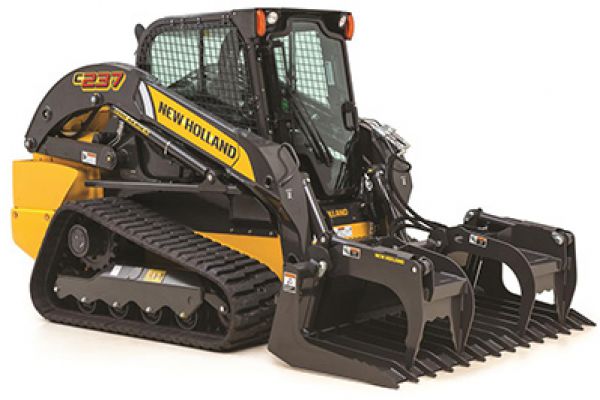

New Holland C237

Double tap to zoom



Features

  • 74 HP engine
  • 3,700-lb rated operating capacity at 50 percent tipping load (7,400-lb tipping load)
  • Long track base of 64.5 inches, with 17.7-inch wide tracks
  • Low ground pressure of 4.3 psi
  • Strong bucket tip and lift breakout forces of 7,360 lbs and 6,110 lbs respectively with 78-inch dirt and foundry bucket

Specifications

Engine


Manufacturer/model FPT/ F5BFL463A*F001
Bore/stroke, in (mm) 3.9 x 4.3 (99 x 110)
Displacement, in3 (L) 207.5 (3.4)
Fuel injection HPCR Direct
Air intake Turbocharged Aftercooled with external EGR
Horsepower per SAE J1349 Gross hp (kW) 74 (55) @ 2,500 rpm
Horsepower per SAE J1349 Net hp (kW) 68 (51) @ 2,500 rpm
Peak torque, lb-ft (Nm) 232 (314) @ 1,400 rpm



Power Train


Travel speed, low range, mph (km/h) 5.1 (8.2)
Travel speed, high range (optional), mph (km/h) 8.0 (12.9)



Dimensions


HEIGHT TO
Bucket hinge pin, in (mm) 131.6 (3.34 m)
Top of ROPS, in (mm) 80.4 (2.04 m)
Bottom of level bucket, fully raised, in (mm) 124.8 (3.17 m)
Overall length without attachment with coupler, in (mm) 117.9 (3.0 m)
Dump angle, degrees 53.5
Dump reach (max height), in (mm) 35.1 (0.80 m) @ 45.0 degrees
Rollback, bucket on ground, degrees 34.2
Rollback, bucket at full height, degrees 86.0
Track on ground, in (mm) 64.5 (1.64 m)
Ground clearance (bottom of belly pan), in (mm) 9.5 (0.24 m)
Angle of departure, degrees 32.0
Clearance circle without bucket, in (mm) 58.5 (1.49 m)
Clearance circle rear, in (mm) 67.0 (1.70 m)
Overall width, in (mm) 76.0 (1.93 m)
Ground pressure, PSI (with spec belt) 4.2 psi (29 kPa)



Hydraulic System


Pump flow, gpm (Lpm) 24.2 (91.5)
Optional high flow, gpm (Lpm) 37.6 (142.5)
Relief pressure, psi (bar) 3,046 (210)



Performance Specs


Rated operating load, 50% tip, lbs (kg) 3,700 (1678)
Rated operating load, 35% tip, lbs (kg) 2,590 (1178)
Tipping load, lbs (kg) 7,400 (3357)
Breakout force, lift cylinder, lbs (kN) 6,292 (28.0)
Breakout force, bucket cylinder, lbs (kN) 8,776 (39)
Operating weight, lbs (kg) Unit equipped w/ open cab; 165 lb operator; 78 in Heavy Duty bucket; full of fuel: 9,630 (4370)
