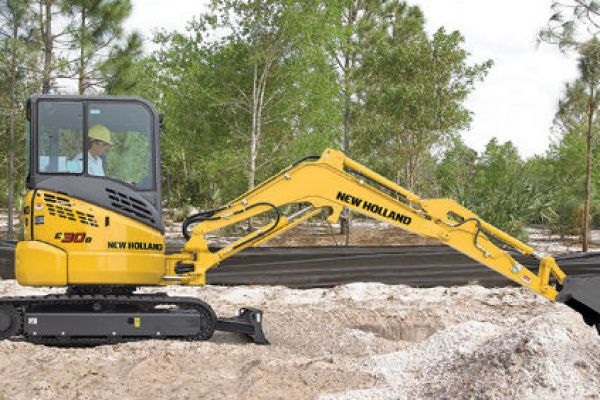

New Holland E30B

Double tap to zoom



Get ready to boost your daily productivity with the smooth, responsive power of compact excavators from New Holland.  Comfort and versatility are part of their design. New Holland compact excavators not only allow you to excavate, grade and backfill with one machine, they allow you to save fuel and time while doing it.

New Holland compact excavators put big digging power into tight spaces.  The center-swing boom arm lets you dig, fill and grade along near-perpendicular angles like footings, curbs and foundations.  The boom light is now positioned snugly under the boom, not on the side where it could be damaged. And, zero tail swing means you operate in confidence, knowing your machine always operates within the track footprint.

These excavators are ruggedly built to deliver outstanding performance, day after day.     In fact, these heavy-duty models feature many of the same robust design features found only on larger excavators:
- Long X-frame that provides excellent stability and support
- Thick gauge steel booms and arms that deliver superior strength
- Sealed rollers, sprockets and travel motors that extend undercarriage life.

Choose a 4-post ROPS/canopy or fully enclosed cab with standard air conditioning. Either choice gives you a clear all-direction view for confident, relaxed operation. On cab models, the air conditioner unit is positioned out of your line of sight.

A wide entry welcomes you to the operator station, and you’ll appreciate the foot and shoulder room New Holland excavators offer. The adjustable seat and wrist supports allow for personalized comfort. The convenient sliding cab door (models E30B and E35B) maintains your excavator’s footprint by gliding open within the machine frame so it’s never in the way.



Model Yanmar 3TNV88F-E
Displacement, cu in (l) 100.2 (1.642)
Horsepower ISO NET (KW) @ rpm 23.1 (17.2) @ 2,400

Dimensions, ft (m)

  Standard Arm
Arm length 4' 4" (1.32)
Boom length 7’7” (2.31)
Overall length 15' 6" (4.73)
Overall width (collapsed) -
Overall width (expanded) 5' 1" (1.55)
Overall height (to top of canopy) 8' 3" (2.51)
Base machine length 8' 8" (2.64)
Ground clearance of rear end 1' 10" (0.57)
Center distance of tumblers 5' 7" (1.70)
Overall length of crawler 7' 1" (2.16)
Track gauge (collapsed) -
Track gauge (expanded) 4'1" (1.25)
Width of crawler shoe (rubber) 11.8" (0.30)
Ground clearance of undercarriage 11.8” (0.30)
Base machine weight, lb (kg) 7,319 (3320)
Base machine weight with bucket, lb (kg) -
Working weight, lb (kg) 7,319 lbs (3320 kg)
Travel speed (turtle), mph (km/h) 1.6 (2.50)
Travel speed (rabbit), mph (km/h) 2.7 (4.40)
Drawbar pull force, lb (kN) 8,632 (38.4)
Arm breakout force, SAE lbf (kN) 4,092 (18.2)
Arm breakout force, ISO lbf (kN) -
Bucket breakout force, SAE lbf (kN) 5,418 (24.1)
Bucket breakout force, ISO lbf (kN) -
Max digging reach 17' (5.20)
Max digging reach at ground level 16' 6" (5.04)
Max digging depth 9' 3" (2.82)
Max digging height 15' 9" (4.80)
Max dumping clearance 11' 3" (3.42)
Min dumping clearance 4' 3" (1.30)
Max vertical wall digging depth 7' 9" (2.36)
Min front swing radius 7' 6" (2.30)
Height at min front swing radius 12' 2" (3.70)
Horizontal digging stroke - ground level 5' 7" (1.71)
Ground pressure, psi (kPa) 4.19 (28.9)
