Specializing in farm equipment sales, parts, and service.

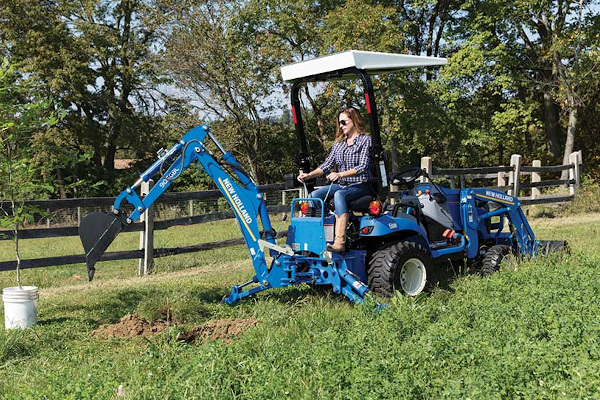

New Holland WM25S + 100LC LDR + 905GBL BH

Double tap to zoom



Features

RUGGED, EFFICIENT POWER

The WORKMASTER™ 25S' large displacement, fuel efficient diesel engine has the power you'll need to make short work of your to-do-list.

EASY ON AND OFF

WORKMASTER'S CLEAR-THRU™, flat deck operating platform makes getting on and off a breeze.

SIMPLE TO OPERATE

With its well placed, clearly marked and color coded controls you'll be operating the WORKMASTER™ 25S like a pro in no time.

BOOMER GUARD6

You get the peace of mind of New Holland's FREE Boomer Guard6 Limited Warranty that includes 2 years of "bumper-to-bumper" coverage plus a extra 4 years of powertrain protection.

ENGINE

POWER TO LOAD, MOW, DIG AND MORE

The WORKMASTER™ 25S sub-compact tractor packs a lot of power in a small package. With 25 engine HP on tap you will be amazed at what's possible. Bring on the your toughest chores.

RUGGED, RELIABLE, FUEL EFFICIENT

The WORKMASTER 25S features a reliable 3 cylinder diesel engine. This naturally aspirated, 77.3 cu. in. (1.26L) displacement, power plant is fuel efficient and has the power Homeowners or AG-lifestylers need to make short work of their to-do-list.

EASY FILL UP, LONG RUNNING TIME

The WORKMASTER 25S features a large 6.6 Gallon (25L) fuel tank letting you complete more tasks between fill-ups. When it comes time to add diesel fuel you will appreciate WORKMASTER's large fill opening, which makes spills a thing of the past, and convenient, low lift, fender location.

TRANSMISSION

INFINATE SPEEDS, INFINATE EASE

The WORKMASTER™ 25S sub-compact tractor packs a lot of power in a small package. With 25 engine HP on tap you will be amazed at what's possible. Bring on the your toughest chores.

DUAL PEDALS FOR EASY OPERATION

When it comes to changing speed or direction is doesn’t get any easier than with WORKMASTER. With its Dual pedal transmission design you'll master direction chances faster than you can say Loader work. The forward and reverse pedals feature anti-slip rubber pads that are color coded and embossed with their direction of travel for sure, safe operation every time.

CRUISE AT THE TOUCH OF A BUTTON

Lots to mow? Then you will appreciate the 25S' standard cruise control which will make the acres fly by. Simply use the forward travel pedal to achieve the speed you'd like to maintain then push the conveniently located cruise button - its that easy.

Specifications

WM25S + 100LC LDR + 905GBL BH
Engine
Emissions Level T4B Final
Gross horsepower hp (kW) 24.7 (18.4)
Rated speed rpm 3000
No. of cylinders 3
Aspiration Natural
Displacement cu.in. (L) 77.3 (1.26)
Alternator amps 50
Fuel Tank gal. (L) 6.6 (25)
PTO
PTO horsepower hp (kW) 17.2 (12.8)
PTO speed rpm 540
PTO type Independent Electro-Hydraulic Engagement
Mid-PTO Standard
Mid-PTO speed rpm 2500
Transmission
Type/Control - Choice 1 2 Range Hydrostatic/Dual Pedal
Type/Control - Choice 2 N/A
Maximum forward speed mph (kph) 9.1 (14.7)
Cruise control Standard HST
Gear/shuttle type Synchro
Rear diff-lock engagement Mechanical
Brake type Wet, Multi-Disc
Hydraulics & 3-Point
Implement hydraulic flow gpm (lpm) 4.6 (17.4)
Steering hydraulic flow gpm (lpm) 2.1 (8)
Total Flow gpm (lpm) 6.7 (25.4)
Remote Valves 1 Opt.
3-Point hitch Chain Type Stabilizers /Fixed Link Ends
3PT lift capacity @ ball ends lb. (kg) 992 (450)
3PT lift capacity @ 24 in. (610 mm) behind ball ends lb. (kg) 728 (330)
3-Point linkage category I
Front Axle Options
Two-Wheel Drive N/A
Four-Wheel Drive Standard
Dimensions/Weight
Wheelbase in. (mm) 56.1 (1425)
Length in. (mm) 97.4 (2473)
Width Width in. (mm) 46.7 (1187)
Height (top of ROPS or Cab) in. (mm) 87.4 (2220)
Weight in. (mm) 1444 (655)
100LC Loader
Lift Capacity (max height) lb. (kg) 1005 (456)
Lift Height in. (mm) 72 (1829)
Bucket 50 inch/Pin on
Weight lb. (kg) 363 (165)
160GMS Mower
Cutting Width 60 inches
# of Blades in. (mm) 3
Weight 285 (129)
905GBL Backhoe
Digging Depth in. (mm) -
Bucket -
Weight lb. (kg) -
