New Holland 57

Double tap to zoom



Features

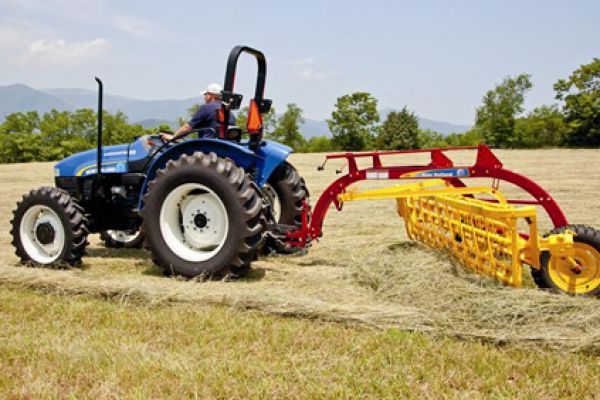

PTO-DRIVEN MODEL 57
Rake an 8-foot, 6-inch strip with the Model 57, which is PTO-driven. The main frame is made of 3-inch channel steel. A total of 90 tines, mounted on five tine bars, follow ground contours closely to get every bit of hay. Tine bar bearings can be replaced quickly, without removing the tine bar from the rake.

Specifications

57
Specifications
Raking width ft. in. (mm) 8'6" (2591 mm)
Width overall ft. in. (mm) 10'3" (3124 mm)
Height overall ft. in. (mm) 3'4" (1016 mm)
Length overall ft. in. (mm) 6'5" (1956 mm)
Wheel Tread ft. in. (mm) 5'5" (1651 mm)
Transport Speed mph (km/h) Tractor Speed
Operating Speed mph (km/h) 2 to 8 mph (3 to 13)
Weight, approx. lbs. (kg) 777 lbs. (352 kg)
Main frame in. (mm) 3" (76 mm) channel, cross-braced with heavy tubular members
Basket -
Basket drive 540 PTO
Gearbox (ground drive) None
Drive Housing Special accuracy shaft running on tapered roller bearings
Tine bars 5, standard high carbon
Tines Steel or rubber-mounted (only rubber-mounted available on hydraulic models)
Number of tines 90
Tine Bar Bearings Single ball bearing
Drive PTO
Delivery Left-hand
Tractor requirement hp 30
Hitch type 3-Point
Standard safety equipment Reflective strips front & rear
