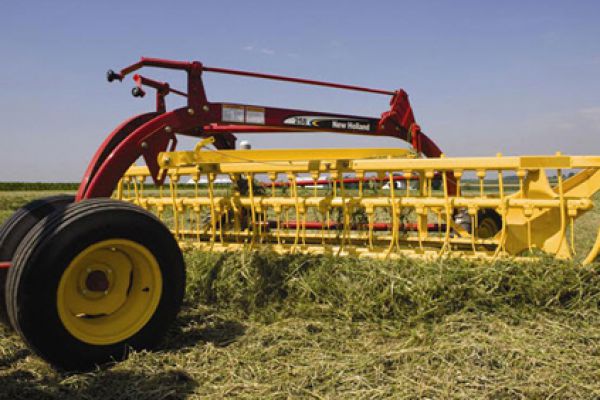

New Holland 258

Double tap to zoom



Features

LARGER MODELS 258 AND 260
Choose from ground or hydraulic drive on the 258 and 260 models; both have a raking width of 9 feet, 6 inches. The 258 is left delivery, while the 260 delivers crop to the right. The hydraulic drive lets you tailor basket speed to crop conditions, regardless of tractor ground speed.

Specifications

258
Specifications
Raking width ft. in. (mm) 9'6" (2896 mm)
Width overall ft. in. (mm) 11' (3353 mm)
Height overall ft. in. (mm) 4'4" (1321 mm)
Length overall ft. in. (mm) 10'1" (3073 mm)
Wheel Tread ft. in. (mm) 5'6" (1676 mm)
Transport Speed mph (km/h) 20 mph (32 km/h)
Operating Speed mph (km/h) 2 to 7 (3 to 11) On hydraulic models: 2 to 10 (3 to 16)
Weight, approx. lbs. (kg) 850 (386) less tires
Main frame in. (mm) 4 (102) channel, cross-braced with heavy tubular members
Basket One piece; welded heavy steel angle
Basket drive Ground or hydraulic
Gearbox (ground drive) Heat-treated gears and clutch running in grease on tapered roller bearings
Drive Housing None
Tine bars 5, extra-heavy high carbon
Tines Steel or rubber-mounted (only rubber-mounted available on hydraulic models)
Number of tines 100 or 155
Tine Bar Bearings Double ball bearing
Drive Ground or hydraulic
Delivery Left-hand
Tractor requirement hp 30
Hitch type Drawbar
Standard safety equipment Reflective strips front & rear; safety tow chain
