New Holland 256

Double tap to zoom



Features

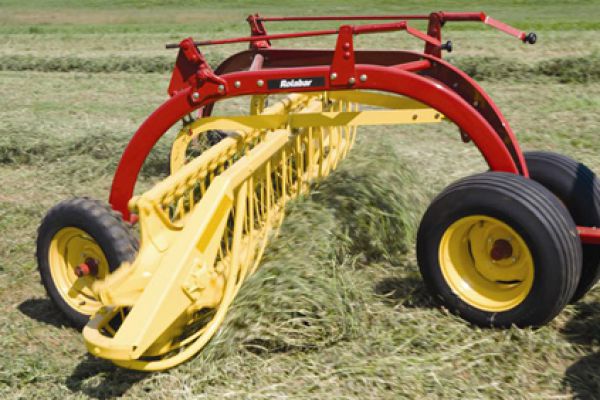

GROUND-DRIVEN MODEL 256
For fast raking in a compact size, the Model 256 is a great, ground-driven choice. With an 8-foot, 6-inch raking width, it’s easy to maneuver in small fields, yet provides excellent durability. Since both wheels drive, you get uniform windrows on both right and left turns.

Specifications

256
Specifications
Raking width ft. in. (mm) 8'6" (2591 mm)
Width overall ft. in. (mm) 10'3" (3124 mm)
Height overall ft. in. (mm) 4'4" (1321 mm)
Length overall ft. in. (mm) 10'1" (3073 mm)
Wheel Tread ft. in. (mm) 5'6" (1676 mm)
Transport Speed mph (km/h) 20 mph (32 km/h)
Operating Speed mph (km/h) 2 to 7 (3 to 11)
Weight, approx. lbs. (kg) 790 lbs. (358 kg) less tires
Main frame in. (mm) 4 (102) channel, cross-braced with heavy tubular members
Basket One piece; welded heavy steel angle
Basket drive Ground
Gearbox (ground drive) Heat-treatedgears and clutch running in grease on tapered roller bearings
Drive Housing None
Tine bars 5, standard high carbon
Tines Steel or rubber-mounted (only rubber-mounted available on hydraulic models)
Number of tines 90
Tine Bar Bearings Single ball bearing
Drive Ground
Delivery Left-hand
Tractor requirement hp 30
Hitch type Drawbar
Standard safety equipment Reflective strips front & rear; safety tow chain
