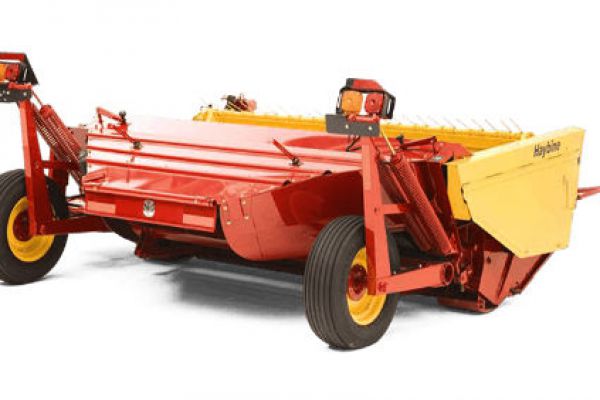

New Holland Haybine® 472

Double tap to zoom



Features

LEGENDARY CUT QUALITY

Full header flotation and the reliable Haybine® cutterbar design assures close, even cutting every time.

PROVEN CONDITIONING

New Holland’s plug-free roll-pressure system delivers smooth, thorough conditioning action.

SIMPLE ADJUSTMENTS

Crop and field conditions change, and New Holland makes it easy to adjust the cutting and conditioning action of your Haybine mower-conditioner to match your needs.

RELIABLILITY YEAR AFTER YEAR

High-volume haymakers and small family farms alike depend on Haybine performance season after season.

CUTTERBAR

SMOOTH, RELIABLE CUTTING

Haybine® mower-conditioners lead the pack in cutting through heavy, down and tangled crops. That smooth, reliable cutting starts with over-serrated, bolt-on knife sections, adjustable sickle hold-down clips and square back-bar guards. And Haybine sickle drive systems are designed to provide clean cutting, less wear and vibration, with minimum maintenance.

SINGLE KNIFE DRIVE (472 and 488)

The 472 and 488 feature New Holland’s proven single knife drive system. The reliable wobble joint sickle drive delivers fast sickle speed for clean cutting with minimum maintenance.

ADJUSTABLE CUTTING ANGLE AND HEIGHT

It’s easy to make a mechanical adjustment to knife and guard angle on the 472 and 488 models to suit crop and field conditions. Hydraulic cutting angle adjustment is standard with the H7150 trail frame, allowing changes on the go, right from the tractor seat, which is ideal for working in rocky fields. Adjustable header skid shoes allow for easy changes in cutting height.

CONSISTENT CROP FLOW AND UNIFORM CONDITIONING

The smaller 472 and 488 models feature a design where the reel sweeps crop directly from the cutterbar into the conditioning system for a smooth and direct crop flow. Reel speeds can be adjusted to compensate for crop conditions and ground speeds.

CONDITIONING

THE HEART OF EVERY HAYBINE—CONDITIONING

Get gentle but thorough conditioning from New Holland chevron-design intermeshing rubber rolls. Their unique spiraled pattern helps grip the crop and keep it moving. The lugs crack the stem every three to four inches to release moisture for fast drydown.

UNIQUE ROLL-PRESSURE SYSTEM

Don’t get bogged down with crop plugging. The New Holland torsion-bar roll-pressure system applies near-constant pressure to the crop, even as the crop mat thickness changes, delivering the most consistent conditioning available. When the rolls reach their maximum opening, the pressure decreases automatically to permit slugs of crop to pass through without plugging.

EASY NO-TOOLS PRESSURE ADJUSTMENT

A turn of a crank is all it takes to change conditioning pressure to match field conditions. No tools are required. The critical roll-gap and roll tension can be adjusted for optimal conditioning, as well. For legumes, the roll should be maintained between 1/64 and 1/16 inches for optimum drydown.

MODEL 472 AND 488: STANDARD WITH RUBBER ROLL CONDITIONING

Model 478 and 488 are available with the proven New Holland chevron-design intermeshing rubber rolls. These rolls are nearly as wide as the cut to provide uniform conditioning to promote fast drying windrows or wide swaths.

Specifications

Haybine® 472
Auger
Auger NA
Floating range, in. (mm) NA
Speed, rpm NA
Conditioner
Conditioner Chevron-design intermeshing molded rubber rolls, torsion-bar roll pressure, single hand-crank adjustment
Roll length (crushing area), in. (mm) 85 (2159)
Roll diameter, in. (mm) 7-3/4 (199)
Drives    Individual, #50 roller chain
Speed, rpm  818
Pressure, lbs./in. (N/mm) 2 to 38 (0.3 to 6.6)
Roll gap adjustment Shims
Material discharge, in. (mm) Adjustable gate for swath, windrow or intermediate widths
   38 and 72 (965 and 1829)
Cutterbar
Cutterbar One assembly
Knives Bolted, over-serrated sections, adjustable assemblies, timed, dual, counter-stroking sickles
Guards Twin, forged steel, double-hardened hold-downs
Cutting height, in. (mm) 1.25 to 4.25 (32 to 108)
Cutting angle, degrees -7 or -10
Hydraulic tilt NA
Guard points max lift, in. (mm) 18-1/2 (470)
Skid shoes 2
Sickle drive wobble joint
Sickle speed, spm 1632
Sickle stroke, in. (mm) 3 (76)
Cutting Width
Cutting Width, ft. in. (mm) 7'3" (2210)
Dimensions
Overall width, operating, ft. in. (mm) 11'11" (3632)
Overall width, transport, ft. in. (mm) 10'4-3/4" (3168)
Overall length, transport, ft. in. (mm) 13'1" (3988)
Overall height, operating, ft. in. (mm) 3'5-3/4" (1060)
Overall height, raised, ft. in. (mm) 4'8" (1422)
Drive
Drive 540 rpm PTO
Hydraulic Cylinders
Hydraulic Cylinders Optional header lift, Rope control
Minimum Tractor Req
Minimum Tractor Req 30-hp (22.4 kw)
  One remote hydraulic circuit required, capable of 1500 psi (10342 kpa)
Operating Speed
Operating Speed, mph (kph) up to 8 (13)
Max safe transport speed, mph (kph) 25 (40)
Reel
Reel 4-tine bar
Peripheral speed, mph (kph) 6.2 to 8.2 (10.4 to 13.2)
Speed Adjustment Variable sheave
Diameter (maximum), ft. in. (mm) 3'6-1/4" (1073)
Adjustments Fore/aft, vertical, pitch
Drive  Belt and chain
Bushings/bearings, in. (mm) 1.25 (31.75) bearing w/collar at cam end and bushings at all other locations
Tires
Tires 25 x 7.50-15 flotation
Tractor Hookup
Tractor Hookup Equal-angle PTO
Weight
Weight, lbs. (kg) 2110 (957)
