Specializing in farm equipment sales, parts, and service.

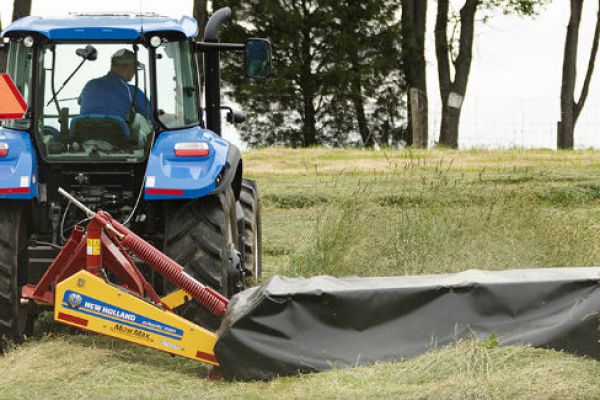

New Holland DuraDisc™ 107M

Double tap to zoom



Features

DURABILITY IS STANDARD

DuraDisc™ heavy-duty disc mowers from New Holland combine fast cutting with trouble-free operation and easy servicing to assure you of the dependable performance you need season after season.

MOWMAX™ DISC CUTTERBAR 3-YEAR FACTORY WARRANTY

New Holland’s MowMax™ disc cutterbar breezes through tough mowing conditions and is backed by three full years of factory warranty so you can cut close with confidence.

QUICKMAX™ KNIFE CHANGE SYSTEM KEEPS YOU SHARP

The QuickMax™ knife change system makes it quick and easy to keep knives sharp for the best cut quality.

CONVENIENTLY MOVE FROM ONE TASK TO THE NEXT

Quick-hitch compatibility on mounted models makes hooking and unhooking the mower from the tractor simple so you can move from mowing to tedding or raking seamlessly.

Specifications

DuraDisc™ 107M
Cutterbar
Cutting width ft. in. (m) 6'8" (2.0)
Cutting height in. (mm) 1.25-3.5 (32-89)
Cutterbar tilt angle degrees 0 to -10
Cutterbar operating range degrees +18 to -32
Breakaway angle degrees 19
Cutterbar flotation Vertical adjustable spring
Type cutterbar MowMax™ cutterbar, modular, with individual sealed reservoirs
Number of discs 5
Knives per disc 2
Disc cutting diameter in. (mm) 19.7 (500)
Disc drive Bevel gears in sealed modules
Disc speed RPM 3000
Cutterbar gear protection Std. ShockPRO™: easy replace ShockPRO hub with a partial complement of sacrificial splines
Swath width, approx standard* in. (mm) 80 (2032)
Swath width with optional swathboards* in. (mm) 48 (1219) includes LH & RH swathboards
Driveline
Minimum PTO horsepower required hp (kW) 45 (33.5)
Input speed RPM 540
PTO shaft spline/size required 6-spline / 1-3/8"
Driveline protection Belt drive to cutter bar
Overrunning clutch
Belt tension Spring-loaded tensioner with adjustment gauge
Hydraulics and Hitch
Hydraulic circuits required One remote
Minimum relief pressure required psi (bar) 1500 (103)
Hitch Category I/II or Category II
Dimensions and Weight
Overall width in. (mm) 138.75 (3524)
Overall length in. (mm) 42.5 (1080)
Height - transport position** in. (mm) 98 (2489)
Weight, operating lb. (kg) 1200 (546)
Maximum transport speed -
Tires/wheels -
