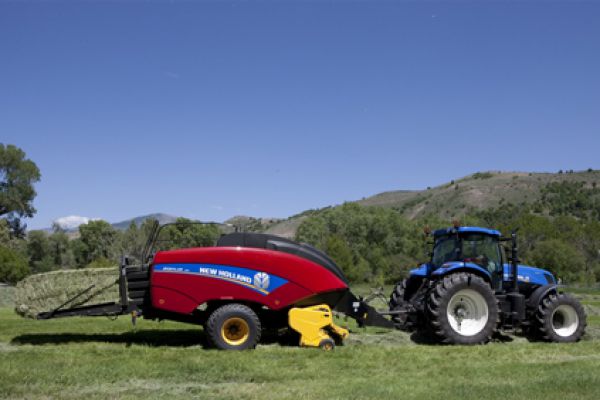

New Holland BigBaler 330 CropCutter Rotor Cutter

Double tap to zoom



Features

Cropcutter™ Feeding Systems

GET THE BENEFITS OF SHORTER CHOP LENGTH

Chopping crop as it’s fed into the baler provides a number of advantages. The shorter particle length allows for tighter packing of material in the bale, better fermentation in silage bales due to less air in the bale and more anaerobic bacteria activity. Cutting silage, hay or straw bales also allows for more efficient feeding and spreading of material. New Holland offers two flexible CropCutter™ feeding systems that allow you to adjust chop length to match your needs.

PACKER CUTTER (BIGBALER 230 AND BigBaler 330 only)

The simple, effective Packer Cutter uses three packer forks and six double tines to feed the crop through a set of serrated knives and into the precompression chamber. Use one to six knives for chop lengths as short as 4.5 inches. New Holland’s staggered tine lengths/rotor lobes prevent crop pinching that’s common with systems using tines or rotor lobes of the same length. A fill-flow floor improves crop flow in high-moisture conditions.

ROTOR CUTTER (BIGBALER 330 AND BIGBALER 340 ONLY)

For the widest range of chop lengths to match specific forage requirements, choose the Rotor Cutter system. Select from two cut length configurations—the short cut configuration delivers chop length as small as 1.5 inches, while the medium cut configuration delivers a chop length of 3.0 inches. The proven W-shaped rotor pattern divides the power requirement equally and also ensures an equal distribution of crop. The rotor now matches the width of the pre-compression chamber for straight-through, smoother crop flow, increased flake density and capacity.

SLIDE-OUT KNIFE DRAWER

The industry-leading, one-piece, slide-out knife drawer on CropCutter™ Rotor Cutter balers makes knife inspection and sharpening fast and easy. Sharp knives require less power and lead to a more consistent cut length.

Specifications

BigBaler 330 CropCutter™ Rotor Cutter
Bale dimensions
Width in. (mm) 31.5 (800)
Height in. (mm) 35.4 (900)
Maximum length in. (mm) 108 (3000)
Tractor requirements
Minimum PTO power hp 130
PTO speed rpm 1000
Hydraulic remotes
Single axle 3
Tandem Axle 3
Main drive
Protection Shearbolt, overrunning clutch and slip clutch
Flywheel weight lbs. (kg) 538 (244)
MaxiSweep™ pick-up
Width-flare to flare in. (mm) 77.5 (1968)
Width-tine to tine in. (mm) 70.9 (1800)
Flotation Adjustable spring
Hydraulic pick-up lift Standard
Gauge wheels 15 X 6.00-6-4ply 2
Pick-up protection Slip clutch
Torque Setting ft. lbs. (Nm) 1475 (2000)
Rotor cutter pickup cut out clutch ft. lbs. (Nm) Optional -1549 (2100)
High performance rotor stop Optional
CropCutter™ system
Abrasion resistant knife options 9 or 19
Knife distance in. (mm) 3.1 (78) or 1.5 (39)
Knife removal Sliding knife drawer
Knife activation, in - out Hydraulic
Knife protection Individual springs
Feeding system
Feeder 2 packer forks 6 single tines
Feeder protection Slip clutch
Stuffer Fork type with 4 tines
Stuffer protection Shearbolt
Pre-compression chamber, volume ft.³ (m³) 8.8 (0.25)
Plunger
Speed strokes/min 48
Length of stroke in. (mm) 28 (710)
Tying system
Type Double knot type
Number of twines 4
Knotter fan type Electric
Knotter fan number 2
Knotter function alert IntelliView™ monitor and visual
Knotter lubrication Automatic greasing
Twine ball capacity 32
Bale density system
Proportional 3-way control IntelliView™ monitor controlled
Manual override Standard
Electronic control system
ISO 11783 connection ready Standard
IntelliView™ III touch screen color monitor Optional
IntelliView™ IV touch screen color monitor Optional
Tires
Single axle. 600/55X22.5 12 PR or 700/40X22.5 16 PR
Tandem axle with Auto-Steer™ 500/50X17 14 PR
Large wheeled tandem axle with Auto-Steer™ 550/45XR22.5
Baler dimensions
Length chute closed (single piece) in. (mm) 294.4 (7477)
Width (single axle 600/55X22.5 12PR tires) in. (mm) 101.1 (2568)
Width (single axle 700/40XR22.5 16 PR tires) in. (mm) 102.5 (2604)
Width (tandem axle 500/50X17 14PR tires) in. (mm) 94.4 (2398)
Width (large wheeled tandem axle 550/45XR22.5 tires) in. (mm) 98.1 (2492)
Width (large wheeled tandem axle 620/50XR22.5 tires) in. (mm) 100.9 (2562)
Height (single axle) in. (mm) 126.9 (3223)
Height (tandem axle) in. (mm) 126.9 (3223)
