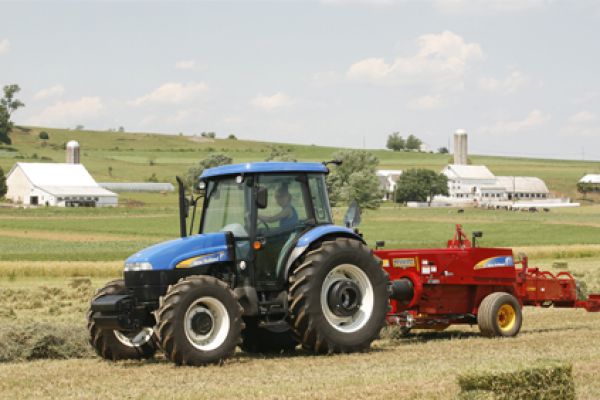

New Holland BC5080

Double tap to zoom




New Holland has made many improvements to the BC5000 Series square balers from our last generation of balers. Most refine existing features, to make them more convenient or even more durable.


Building in more strength and durability is one way New Holland has improved this already top-of-line baler. New improvements include:
• Reinforced tension rail anchor support
• Convex slide block for longer wear and improved plunger performance
• Haydog spring mount reinforcement for improved durability


Adding more conveniences also improves productivity:
• Flip-up shield over main gearbox improves serviceability
• Redesigned knotter gear drive provides easier pickup belt service
• Easier access to the plunger bearing and cam for inspection and adjustment
• New hydraulic hose storage slots in the power pivot shield
• New optional halogen work lights for improved visibility
• New optional roading light kit for states requiring them


• Larger wagon hitch bolt hole for easier hookup
• Relocated Hydraformatic oil pump for easier servicing
• New Class 6 heavy-duty driveline for improved durability
• New pickup drive chain access shield for easier servicing
• Reinforced tongue for added durability
• Wider clevis hitch to accommodate larger tractor drawbars
• Star wheel moved rearward for improved bale length consistency
• Tall eight-ball twine box for increased twine capacity
• Cast iron connecting rod for improved durability
• Heavier bale case for improved durability


Bale Size
Cross section 16 x 18 in. (41 x 48 cm)
Length Adjustable, 12 to 52 in. (31 to 132 cm)
SuperSweep™ Pickup
Width inside 75 in. (1.9 m)
Width on flare 80 in. (2 m)
Number of tines 156
Number of tine bars 6
Floating Windguard Thirteen rods
Drive V-belt to roller chain to "lost motion" reel drive
Gauge Wheel 15 x 6.00 x 6; pneumatic
Hydraulic Pickup Lift Optional
Bale Chamber
Feeding System High-Capacity, Rotary Feeding System
Number Feed Rotors 3
Packer Fork Standard - Adjustable
Feed Opening 318 sq. in. (2052 sq. cm.)
Standard Density System 4-way Hydroformatic
Optional Density System -
Bale Case Heavy-Duty
Stroke length 30 in. (76.2 cm)
Speed (540 rpm) 93 SPM
Material High Strength Steel
Plunger Rail Heavy-Duty
Tying Mechanisms
Twine knotter Heavy-Duty
Billhook Hardened-Steel
Wire twister -
Protection Shearbolt
Twine capacity 8-Lg. Twine Ball
Wire capacity -
Main Drive
Flywheel weight 357 lb (162 kg)
PTO Power-Pivot, Three-joint PTO
PTO Category Cat. 6 HD
Protection  Shearbolt, overrunning and slip clutches
Gearbox Heat-treated hypoid gears on tapered roller bearings running in an oil bath
Flotation Tires
Right side 11L x 14, 6PR
Left side 14L x 16.1, 8PR
Model 72 Bale Thrower
Compatible NO
Height (max.) 71 in. (180 cm)
Width 120 in. (304 cm)
Length (transport less chute) 217 in. (551 cm)
Weight (twine) 4,200 lb (1905 kg)
Weight (wire) -
Tractor Requirement*
Minimum horsepower 80 hp (60 kW)
Minimum weight Tractor weight must be greater than baler weight; excludes bale thrower
Hydraulic requirement 1 double acting, 1 single acting
