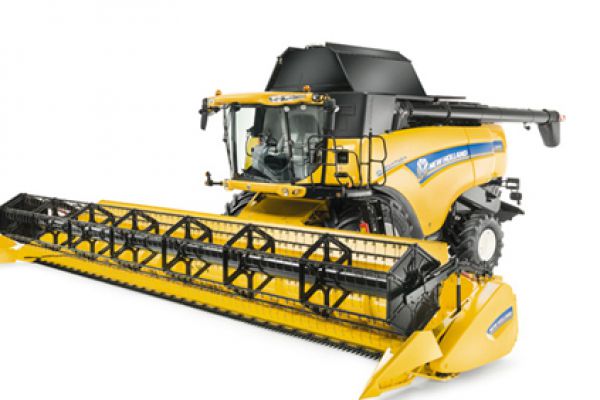

New Holland CX8080 Elevation

Double tap to zoom



Features

Super clean, Super efficient
The CX8000 Elevation combines are fitted with ECOBlue™ SCR engines which comply with the stringent Tier 4A emissions regulations. Want more? How about a cool 10% fuel savings which will help reduce your input costs to make your CX Elevation combine even more efficient.

INTELLISTEER™: A SMARTER WAY TO HARVEST
All CX8000 Elevation combines can be ordered direct from the factory with IntelliSteer™ – New Holland’s fully integrated auto guidance package. Fully compatible with the most accurate RTK correction signals, the IntelliSteer™ system can guarantee pass-to-pass and year-to-year accuracy of under an inch.

Super-size Tires, Super-small impact
All models are fully compatible with the tallest 620/70/R42 dual tires. These ultra tall tires deliver the very widest footprint, to reduce in-field compaction for increased future yields. It’s a win-win situation.

Productive 25-MPH transport
The CX8000 Elevation Series are the fastest conventional combines around. The super-fast optional 25-mph top transport speed is achieved at engine speeds as low as a mere 1,600 rpm. The result? You spend more time in the field during tight harvesting windows and less time on productivity-reducing transport. Want more? How about exceptional fuel economy and reduced in-cab noise!

Flexible heads offering
The CX8000 Elevation combines are fully compatible with the very largest heads. Whether you choose the draper, pick-up, SuperFlex, corn or Varifeed heads, the CX will clear even the largest fields in the blink of an eye.

Specifications

CX8080 Elevation
Combine Class
Combine Class 7
Grain heads
Cutting width [ft. (m)] 20-35 (6.1 - 10.67)
Corn heads
Number of rows > Folding corn heads (rows) 6-8
Number of rows > Rigid corn heads (rows) 6-10
Automatic header control systems
Autofloat™ system Standard
Straw elevator
Front face adjustment Standard
Lateral Flotation Standard
Cab
Leather air-suspension seat Optional
Instructor's seat Standard
IntelliView™ IV monitor with adjustable position Standard
Automatic climate control and coolbox Standard
Automatic climate control and fridge Optional
New Holland Precision Land Management systems - Guidance systems
IntelliSteer™ automatic guidance system Optional
IntelliCruise™ System Optional
Automatic row guidance system for corn heads Optional
New Holland Precision Land Management systems - Precision farming
Moisture measuring Optional
Yield measuring and moisture measuring Optional
Full Precision farming package including yield measuring and moisture measuring, DGPS yield mapping Optional
PLM™ desktop software and software support service (1 year) Optional
Threshing drums
Width [in. (m)] 62 (1.56)
Diameter [in. (m)] 29.5 (0.75)
Drum Concave
Area [sq.in. (m²)] 1829 (1.18)
Wrap angle (degrees) 111
Beater
4 paddles and 4 teeth rows (alternating) [in. (m)] 18.75 (0.475)
Rotary Separator
Rotary Separator Standard
Multi-Thresh™ system Standard
Strawwalkers
Number 6
Opti-Speed™ variable strawwalker speed Standard
Cleaning
Self-levelling cleaning shoe Standard
Opti-Clean™ cleaning system*** Standard
Cleaning fan
Opti-Fan™ system Standard
Grain tank
Capacity with remote foldable covers [bu. (l)] 326 (11,500)
Capacity with manual foldable extensions [bu. (l)] 350 (12,300)
Engine* complaint with Tier 4 emission reguations
Engine* complaint with Tier 4 emission reguations FPT Cursor 9*
ECOBlue™ SCR system (Selective Catalytic Reduction) Standard
Gross engine power @ 2100 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] 265/360
Maximum engine power @ 2000 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] 295/401
Approved Biodiesel Blend B20**
Fuel tanks Diesel / AdBlue capacity
Fuel tanks Diesel / AdBlue capacity [gal. (l)] 265/32(1000 / 120)
Transmission type 4-speed hydrostatic
Maximum speed standard / optional [mph. (kph)] 19 / 25 (30 / 40)
Residue management
Integrated straw chopper Standard
Chaff spreader Optional
Dimensions with traction wheels (****)
Dimensions with traction wheels (****) 900/60R32
Wheelbase [ft. (m)] 12'4" (3.76)
Maximum height in transport position [ft. (m)] 13' (3.96)
Maximum width - transport [ft. (m)] 12'9" (3.9)
Weight
Weight without hreader, chaff spreader and straw chopper [lbs (kg)] 17,198 (7800)
