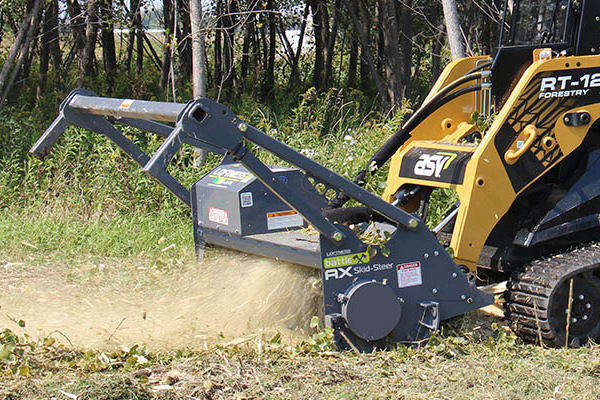

Loftness 61"

Double tap to zoom



Depth Gauges

The Battle Ax rotor includes built-in depth gauges, which function similarly to raker teeth on chain saws to prevent the attachment from engaging too much material at one time. This unique design is more ideal for managing the amount of material being fed into the attachment than competitive ring-style rotors, which many operators find to be overly limiting. It has also proven to perform better with both Quadco blades and carbide cutting teeth.

Two-Stage Cutting Chamber

The Loftness exclusive two-stage cutting chamber provides some of the smallest particle sizes in the industry by cutting material twice. Not only does this allow faster decomposition, but it also results in a nicer looking end product. The primary shear bar is adjustable, so the clearance can be narrowed or widened depending upon the desired material size and production rate. From here, the partially reduced material passes smoothly to the secondary cutting chamber behind the front bumper, where it’s processed further before being discharged toward the ground.

Tooth Mounting

The Quadco knives or carbide cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.

Staggered/Spiral Tooth Pattern

This exclusive tooth arrangement ensures single-tooth contact with the work surface at all times while maintaining optimal rotor balance.

Adjustable Skid Shoes

To achieve below grade mulching, the skid shoes can be adjusted from 0.5 inches to minus 1.5 inches.

Adjustable Push Bar

Constructed with integrated, welded claw hooks, the bar helps push falling trees and brush away from the power unit, while also allowing them to be properly positioned for efficient feeding into the head.

Machined Anti-Wrap Bearing Protector

Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.

Synchronous Belt Drive

The positive drive, cog belt and sprocket design maximizes efficiency and requires less maintenance than other drive types.

Custom Hydraulic Control Valve

A high-pressure relief valve protects the Battle Ax from pressure spikes at the source. It also includes an anti-cavitation shutdown circuit.

Performance Monitoring

An integrated PSI gauge that monitors the hydraulic load is positioned for easy viewing from the skid steer cab. Keeping the Battle Ax at the optimum hydraulic load allows for peak performance throughout an application.

Premium Strength Steel Housing

All body components are laser cut from premium strength steel. Also, abrasion resistant steel is used in high-wear areas.

Steel Deflector Chains

Running the entire length of the attachment, steel deflector chains improve safety by reducing flying debris.

Maximum Visibility

The Battle Ax is designed for maximum visibility from the skid steer cab, which increases safety, productivity and efficiency.

Universal Skid Steer Mount

The universal mount allows the Battle Ax to be easily used with any skid steer brand or model.

Hydraulic Hose Routing

Hoses are right sized and routed to reduce the chance of binding, yet are long enough for a full range of motion without damage. Hoses are included, couplers are not.


Model 61"
Cutting Width 61" (1.55 m)
Overall Width 76.2" (1.94 m)
Number of Teeth 36
Weight (without mount) 2,500 LBS (1,134 kg)
Crated Weight 2,725 LBS (1236 kg)
Hydraulic Horsepower Range 50-120 Hydraulic HP
Fixed-Displacement Gear Motor Up to 4,300 PSI - 28-40 GPM
Variable-Displacement Piston Motor Up to 6,000 PSI - 32-45 GPM
Specifications and data are subject to change without notice.
