Specializing in farm equipment sales, parts, and service.

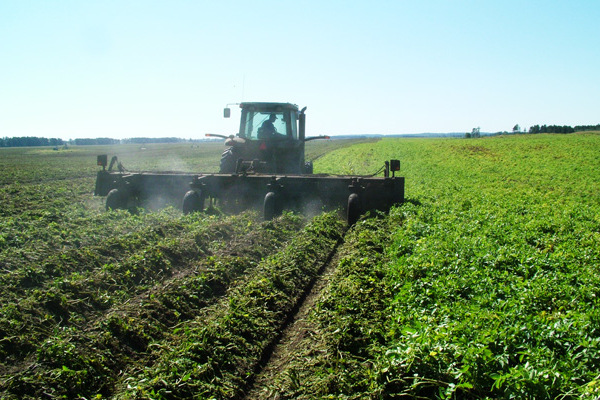

Loftness 288

Double tap to zoom



Features

Rear Lift

Provides precise height adjustment for fine tuning performance and chop. Rear lifting choices include three ratchet or hydraulic cylinders.

PTO

Available with a 1 3/8-inch or 1 3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types. Slip clutch is optional for extreme-duty applications.

Gearbox

A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. The Vegetable 12/24 is built with a 1,450 RPM gearbox.

Knives

The Vegetable 12/24 comes equipped with Loftness contour knives. There are three lengths of knives to follow ridges. Contour knives are available for 34-, 36-, 38-, 40-, 42- and 44-inch beds.

Belt System

Efficient transfer of power via a four- or six-groove banded belt and spring-loaded push-type idler system.

Zero-Turn Radius

Fully-mounted option is available on all Vegetable Shredders. They offer zero-turn radius operation and zero driveline deflection, but may require a large tractor because the shredder is lifted off the ground.

Mounting

The 12/24 can be configured as a pull-type, semi- or fully-mounted model. Standard wheel choices apply.

Driveline Bearings

A heavy-duty 1 3/4-inch American-made ball bearing is used to support the line shaft midway between the gearbox and end plate.

Wheel/Roller Spacing

Wheel position is adjustable to accommodate different row widths.

Bed Rollers

Specially designed bed rollers gauge the height of the cut from the top of the bed for more accurate cutting. The bed rollers also help push any uncovered vegetables into the ground to reduce exposure to the sun. Configurations for the 12/24 with bed rollers must use a fully-mounted hitch.

Specifications

Model 288
Size 24'
Fully-mounted Height 48"
Fully-mounted Length 98"
Cutting Width 288"
Overall Width 307"
Hitch Length 12"
Weight in Pounds 7500
Number of Rotors 4
 Specifications and data are subject to change without notice.
