Specializing in farm equipment sales, parts, and service.

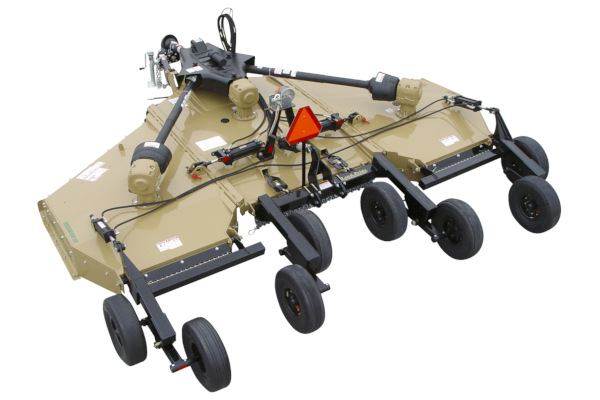

Land Pride RCB6615

Double tap to zoom



Features

Features Benefits
Surpassed rugged industry standards All Land Pride Cutters have been designed and tested to meet rigorous voluntary testing procedures according to ISO 4254-13.
Factory assembled Saves customer set-up time and money. Adjustments should always be made by dealer.
7 Year gearbox warranty Shows confidence in gearbox integrity. (Years 6 & 7, parts only.)
Rugged heavy built gearboxes Gearboxes are capable of handling heavy cutting applications.
Gearbox seal protection Gearbox bottom seal protection for longer bearing life.
2 3/8" Output gearbox shaft Large output shaft handles shock loads better.
2 Piece shield on wing gearboxes Driveline grease zerks are easier to access.
Self-leveling hitches Reduces drawbar wear by keeping hitch level while going through ditches.
Narrow A-frame hitch Allows for a tighter turning radius.
Adjustable park jack angle Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline hanger Serves as a support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor power take-off shaft.
Input Driveline: Cat. 6 CV or Cat. 5 conventional Holds up to shock loads and harsh mowing conditions. Constant velocity (CV) U-joint allows for 80 degrees turns without doing damage to the driveline.
Grease zerks on end caps of driveline cross journals Intermediate and wing driveline cross journals are easier to grease. All drivelines have access holes for greasing the U-joints and inner profiles.
4 Plate slip-clutch Protects drivelines and gearboxes by slipping clutches rather than twisting the driveline when imparcts are encountered
High blade tip speed Allows clean cutting of material and even distribution. See Specifications for actual FPM.
6" Blade overlap Eliminates skipping during turns.
High cutting capacity Can cut brushy areas with saplings up to 4 1/2".
Pre-cut chamber Allows grass and vegetation to stand back up prior to cutting for a more complete cut.
Reinforced leading edge Front of deck can withstand heavy brush and saplings.
12" Deck height Handles heavy cutting, which reduces balling-up of cut material under the deck.
10 Gauge smooth deck top Reduces accumulation of debris and is easier and faster to clean.
7 Gauge smooth deck bottom Heavy deck design holds up to harsh conditions. No bottom obstructions.
Replaceable 1/4" side skirt Reduces debris piercing possibilities. Can be replaced if damaged.
Left wing rotates clockwise Better discharge of material. Picks up tractor tracks.
3/16" Round stump jumper backed with a 1" thick mounting plate. Heavy round stump jumper for protecting the gearbox seal and gearbox output shaft. Can hold up to tough conditions.
Spindle nut protected Spindle nut and threads extending beyond the nut are guarded to protect against damage from hitting solid objects.
Beveled skid shoes on wings Reduces gouging the ground when turning.
LED Signal lights LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts.
Hinged wing sections Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting.
Greasable wing folding hinges Provides for a long hinge life and allows wings to fold up and down with less stress.
1" Solid hinge rods Gives greater strength to the cutter from front to rear, and in the hinge area itself.
Wing transport locks Holds transport wings in the folded-up position in case of hydraulic pressure loss.
Collapsible 1" Leveling rods Prevents damage and failure to leveling rods. Large diameter leveling rods provide superior supporting strength over rough terrain.
Enclosed dual leveling rods Dual leveling rods enable the cutter to pull equally on the rear axle during travel over rough terrain. Many competitors only use one leveling rod.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting

Specifications

Specifications & Capacities RCB6615 & RCBM6615 Series 2
Horsepower range 50 to 250
Gearbox horsepower 250 hp splitter
210 hp center & wing
Gearbox oil capacity 5.5 Pints: divider gearbox
10 Pints: center deck, LH deck & RH deck spindle gearboxes
Gearbox lubrication Gear lube 80-90W EP
Cutting capacity 4 1/2"
Machine weight
Tongue weight
Total weight

Chain guards, 6 AC tires, and standard clevis
1,842 lbs.
5,738 lbs.
Blade tip speed
At 540 rpm
At 1000 rpm

Center blades = 16,300 FPM Wing blades = 16,300 FPM
Center blades = 16,300 FPM Wing blades = 16,000 FPM
Tongue types Optional Self-Leveling Clevis Hitch, LP Performance Hitch,
Bar-Tite Hitch, Pintle Hitch, or Ball Hitch
Hitch jack Standard (7,000 lbs.)
Signal lights
7 Pin connector
LED (light-emitting diode)
SAE J560 pin configuration
Cutting width
Overall width
Minimum transport width
15' - 0"
15' - 8 1/2"
7' - 5 1/4" (With tandem wheels & cutting height at 2")
Overall length 17' - 0 1/2" (With tandem wheels & cutting height at 2")
Deck height 12"
Cutting height 2" to 14"
Lift hydraulics Center deck Right wing Left wing 3 1/2" x 8" Re-phasing hydraulic cylinder with hoses, fittings & stroke control spacers
3 1/4" x 8" Re-phasing hydraulic cylinder with hoses & fittings
3" x 8" Re-phasing hydraulic cylinder with hoses & fittings
Wing hydraulics Two independently plumbed 3 1/2" x 8" dual-acting cylinders complete with hoses & fittings
Wing transport protection Transport locks with hitch pins
Deck material 10 Gauge top deck and 7 gauge bottom deck
Side skirt material Bolt-on replaceable 1/4" steel
Skid shoes Wing deck Center deck Reversible & Replaceable: 2 straight skid shoes and 2 AR400 leading skid shoes.
Replaceable: 2 skid shoes
Six blades (2 per carrier) 1/2" x 4" Heat treated free swinging alloy steel with up lift
Blade overlap 6"
Blade bolt Keyed with hardened flat washer & locknut
Stump jumper / blade holder 3/16" Thick round dish shaped pan, reinforced with 1" thick blade mounting plate; or optional
Shredder Kit
Deck ring Optional 1/2" x 3" fully welded
Front & rear guards Optional rubber, single chain, double chain, or double chain with cable
Input driveline 540 & 1000 rpm Cat. 6 with constant velocity u-joint or Cat. 5 with conventional (non-cv) u-joint
Intermediate & wing drivelines Cat. 5 with slip-clutch
Wheel options
Standard axle & tandem axle
6" x 21" Laminated tires, 25.5" new tire with or without foam fill,
24" x 12 ply used pneumatic aircraft tires, and 29" x16 ply used pneumatic aircraft tires.
Number of wheels
Standard axle

6 - Wheel option: 4 on transport axle and one on each wing axle
8 - Wheel option: 4 on transport axle and two on each wing axle
Tandem axle 6 - Wheel option: 4 on transport axle and one non tandem on each wing axle
8 - Wheel option: 4 on transport axle and two on each wing axle
Standard transport axle Spring-cushioned on trailing arms
Hubs Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" shafts
