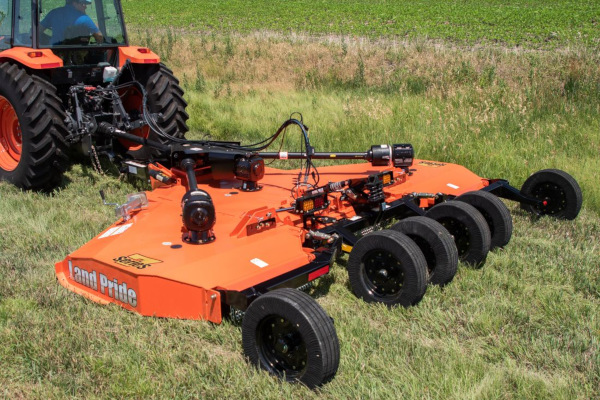

Land Pride RCM4715

Double tap to zoom



Features

Features Benefits
Surpassed rugged industry standards All Land Pride Rotary Cutters have been designed and tested and meet rigorous
voluntary testing procedures according to ISO 4254-13.
Factory assembled Arrives for quick and easy set-up. Minimal time wasted setting or prepping the unit.
7 Year gearbox warranty Shows confidence in gearbox integrity.
Rugged heavy built gearboxes Capable of handling heavy cutting applications.
Gearbox seal protection Gearbox bottom seal protection for longer bearing life.
Sliding guard for splitter gearbox Sliding guard offers protection and easy access for improved efficiency of splitter
gearbox maintenance.
2 Piece driveline shields Driveline grease zerks are easier to access.
Low hitch weight on tractor tongue Ideal for smaller hp tractors by reducing the amount of weight on the drawbar.
Narrow A-frame hitch Allows for a tighter turning radius.
Adjustable park jack angle Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline hanger Serves as support rest for the driveline when the cutter is unhooked from the tractor.
Assist operator when attaching driveline to tractor power take-off shaft.
Input driveline: Cat. 6 CV Driveline is matched just right for tractor capacity. Constant velocity (CV) U-joint
allows for 80 degree turns without doing damage to the driveline.
Drivelines with slip-clutches:
Cat. 4 intermediate
Cat. 4 or Cat. 5 wings

Driveline is sized right for the intended cutting capacity.
Slip-clutches will slip under load to minimize twist damage to driveline profiles.
Grease zerks on end caps of driveline Intermediate and wing driveline cross journals are easier to grease.
High blade tip speed Allows clean cutting of material.
6" Blade overlap Eliminates skipping during turns.
Diamond blade bar Provides the critical strength needed for consistent, top performance.
3/16" Round stump jumper Standard thick stump jumper material keeps damage to a minimum.
Smooth top design Reduces accumulation of debris and is easier and faster to clean.
Tops of decks are 100% welded Makes center decks and wing decks stronger.
1/4" Sidewall thickness Increased thickness reduces damage from objects being thrown into deck sidewalls.
Multiple center skid shoe locations Run two or four skid shoes in locations under the tongue pivots or out at the wing hinges.
Beveled skid shoes on wings Reduces gouging the ground when turning.
LED signal lights LED lights are bright, long lasting, and resist vibration, unlike incandescent lights.
Hinged wing sections Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and
hollows can cause uneven cutting.
1" Solid hinge rods Larger diameter hinge rod provides greater strength in the hinge area.
Wing transport lock pins Transport lock pins will hold wings in folded position in the event of hydraulic loss.
Enclosed dual 1" leveling rods Cutter pulls equally on the rear axle while traveling over rough terrain.
5-Bolt hubs 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheels mounted on folded-up wings.
Helps prevent paint deterioration and rusting to the wheel rims.
Spring cushioned center-axle Protects unit from bumps and ground shock.
Optional spring cushioned wing-axles Further improves ride over a multitude of terrains.
Replaceable individual wheel spindles Spindles can be replaced when damaged without replacing entire axle assembly.
Wheel options Laminated tires: Eliminates flats.
Air-filled tires: Give better cushion while transporting.
Foam-filled tires: Give better cushion while transporting and can’t go flat.
LP Performance hitch option Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and
pivots about the tractor drawbar up to 12 degrees in both left and right directions.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.

Specifications

Specifications & Capacities RC(M)4715 & RCG(M)4715
Horsepower range 50 - 250 hp (37.3 - 186.4 kW)
Gearbox horsepower 540 rpm or 1000 rpm
250hp (186.4 kW) Divider and 210hp (156.6 kW) Center & Wings
Gearbox lubrication Gear Lube 80-90W EP
Gearbox oil capacity Splitter: 3.5 pints (1.66 L); Center deck & Wings: 6 pints (2.84 L)
Cutting capacity 4" (10.2 cm)
Machine weight Total weight
Tongue weight
5,000 lbs. (2268 kg)
1860 lbs. (843.7 kg)
Blade tip speed   At 540 rpm
At 1000 rpm
Center Blades & Wing Blades = 16,300 FPM (82.8 mps)
Center Blades = 16,300 FPM (82.8 mps) & Wing Blades = 16,000 FPM (81.3 mps)
Hitch types Swivel Clevis Hitch, LP Performance Hitch, Bar-Tite Hitch, Ball Hitch, or Pintle Hitch.
Hitch jack Standard (7,000 lbs.) (3175.1 kg)
Signal lights
7 Pin connector
LED
SAE J560 pin configuration
Cutting width
Overall width
Transport width with 21" tires
15'-0" (4.57 m)
15'-10" (4.83 m)
10'-3" (3.12 m) - Single-acting fold option, 7’-3" (2.21 m) - Dual-acting fold option.
Overall length 16'-3" (4.95 m) - With center deck raised fully up.
Deck height 12" (30.5 cm)
Cutting height 1-1/2" - 16" (3.8 cm - 40.6 cm) - Varies by tire option.
Lift hydraulics 3" x 8" (7.6 cm x 20.3 cm) hydraulic cylinder, hoses, fittings & stroke control spacers.
Wing hydraulics 2 1/2" x 12" (6.4 cm - 30.5 cm) hydraulic cylinders, hoses & fittings.
Wing transport protection Wing Transport Lock Pins
Deck material thickness 10 Gauge (3.4 mm)
Side skirt thickness 1/4" (6 mm) Steel
Skid shoes Wing Deck: 1 Replaceable skid shoe per wing.
Center Deck: 2 Replaceable skid shoes and multiple mounting locations.
Blades - 6 (2 per carrier) 1/2" x 4" (1.3 cm - 10.2 cm) Heat-treated, free-swinging alloy steel with uplift.
Blade overlap 6" (15.2 cm)
Blade bolt Keyed with hardened flat washer & locknut.
Stump jumper / blade holder 3/16" (5 mm) Thick round dish shaped pan, reinforced with 1" x 4" (2.5 x 10.2 cm) blade bar.
Front & rear guards Optional single row chain or dual row chain.
Input driveline 540 & 1000 rpm Cat. 6 with constant velocity u-joint with or without overrunning clutch.
Intermediate driveline Standard - Category 4 with slip-clutch.
Wing drivelines Standard - Category 4 with slip-clutch or Category 5 with slip-clutch.
Wheel options 21" (53.3 cm) or 26" (66 cm) Laminated tires
24" (61 cm) Used aircraft, foam filled tires
25.5" (64.8 cm) 20 ply tires, foam filled or pneumatic
29" (73.7 cm) Used aircraft tires
Number of wheels 6 - Wheel option: Four on transport axle and one on each wing axle.
8 - Wheel option: Four on transport axle and two on each wing axle.
Transport axle Many configurations to choose from.
Hubs Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" (4.4 cm) shafts.
LP Performance hitch & Bar tite hitch pivot shaft diameter 2 1/4" (5.7 cm)
A-frame tongue 5" x 3" (12.7 cm x 7.6 cm) rectangular tubing
