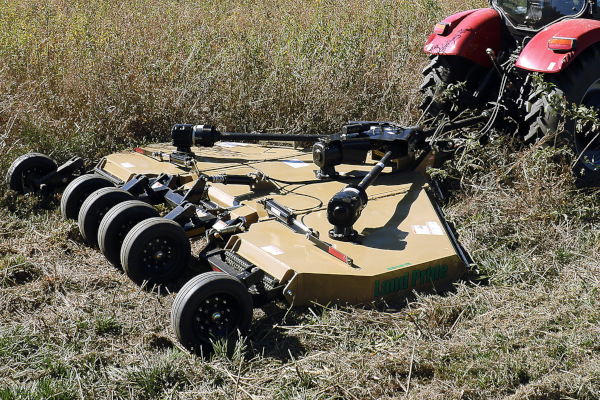

Land Pride RC4610

Double tap to zoom



Features

Features Benefits
Surpassed rugged
industry standards
All Land Pride Rotary Cutters have been designed and tested and meet rigorous
voluntary testing procedures according to ISO 4254-13.
Factory assembled Arrives for quick and easy set-up. Minimal time is wasted setting or prepping the unit.
7 Year gearbox warranty Shows confidence in gearbox integrity. (Years 6 & 7, parts only.)
Rugged heavy built gearboxes Capable of handling heavy cutting applications.
Gearbox seal protection Gearbox bottom seal protection for longer bearing life.
2 3/8" Output gearbox shaft Large output shaft handles shock loads better.
2 Piece shield on wing gearbox Driveline grease zerks are easier to access.
LED signal lights LED lights are bright, long lasting, and resistant to vibration, unlike incandescent counterparts.
LP Performance Hitch Reduces drawbar wear by keeping hitch level while going through ditches.
Low hitch weight on tractor drawbar Ideal for smaller hp tractors by reducing the amount of weight on the drawbar.
Narrow A-frame hitch Allows for a tighter turning radius.
Adjustable park jack angle Park jack can be adjusted to be perpendicular to the ground.
Adjustable driveline hanger Serves as a support rest for the driveline when the cutter is unhooked from the tractor.
Assist operator when attaching driveline to tractor power take-off shaft.
Input driveline: Cat. 6 CV Driveline is matched just right for capacity of tractor. Constant velocity (CV) U-joint
allows for 80 degree turns without doing damage to the driveline.
Drivelines with slip-clutches:
Cat. 5 intermediate
Cat. 4 Wing
Driveline is sized right for the intended cutting capacity.
Slip-clutches will slip under load to minimize twist damage to driveline profiles.
Grease zerks on end caps of
driveline cross journals
Intermediate and wing driveline cross journals are easier to grease.
High Blade tip speed Allows clean cutting of material.
6" Blade overlap Eliminates skipping during turns.
Good cutting capacity Can cut brushy areas with saplings up to 3 1/2".
12" Deck height Handles heavy cutting, which reduces balling-up of cut material under the deck.
3/16" Round stump jumper Standard thick stump jumper material keeps damage to a minimum.
Smooth Top Design Allows for easy cleaning of deck.
Deck sheet tops are 100% welded Makes center deck and wing deck stronger.
1/4" Sidewall thickness Increased thickness reduces damage from objects being thrown into deck sidewalls.
Beveled skid shoe on wing Reduces gouging the ground when turning.
Hinged wing section Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and
hollows can cause uneven cutting.
1" Solid hinge rods Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in
the hinge area itself.
Wing transport lock Transport lock will hold the wing in the folded position in the event of hydraulic loss.
Enclosed dual leveling rods Cutter pulls equally on the rear axle while traveling over rough terrain.
5-Bolt hubs on trailing arms 5-Bolt hubs makes the wheel assembly more durable and longer lasting.
Drain holes in wheel rims Allows water to drain from wheel(s) mounted on folded-up wing.
Helps prevent paint deterioration and rusting to the wheel rims.
Spring-cushioned trailing arms Provides independent suspension, cushions loads on cutter and tractor drawbar.
Replaceable wheel spindles Wheel spindles can be replaced when damaged without replacing entire axle assembly.
7/8" Leveling rods Large diameter leveling rods provide superior supporting strength over rough terrain.
Wheel options Laminated tires: Eliminates flats.
Air filled tires: Give better cushion while transporting.
Foam-filled tires: Give better cushion while transporting and can’t go flat.
LP Performance Hitch option Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and
pivots about the tractor drawbar.
Bar-tite hitch option Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear.
Deck ring option Keeps blades from damaging the deck.

Specifications

Specifications & Capacities RC4610
Tractor horsepower 50 - 200 hp
Gearbox horsepower 540 rpm or 1000 rpm
250 hp divider
210 hp center & wing
Gearbox lubrication Gear Lube 80-90W EP
Gearbox oil capacity Splitter: 5.5 pints; Center deck & Wing: 10 pints
Cutting capacity 3 1/2"
Machine weight Total weight
Tongue weight
4868 lbs. Includes 5 Laminated tires, single chains, deck rings, and LP Performance Hitch.
1920 lbs.
Blade tip speed At 540 rpm
At 1000 rpm
Center Blades = 16,300 FPM & Wing Blades = 16,300 FPM
Center Blades = 16,288 FPM & Wing Blades = 16,000 FPM
Hitch types Optional Self-Leveling Clevis Hitch, LP Performance Hitch,
Bar-Tite Hitch, Pintle Hitch, or Ball Hitch
Hitch jack Standard (7,000 lbs.)
Cutting width
Overall width
Minimum transport width
10'-0"
11'-7 3/4"
7'-7 3/4"
Overall length 16'-6" (Shorter if deck is raised fully up)
Deck height 12"
Cutting height 2" - 14"
Lift hydraulics 3" x 8" hydraulic cylinder, hoses, fittings & stroke control spacers
Wing Flex 45o up, 20o down while cutting.
Wing hydraulics 3" x 12" hydraulic cylinder, hoses & fittings
Wing transport protection Wing transport lock
Deck material 10 gauge
Side skirt material 1/4" plate
Skid shoes Wing deck
Center deck
1 Replaceable shoe
2 Replaceable shoes
Signal lights
7 Pin connector
LED (light-emitting diode)
SAE J560 pin configuration
Blades - 4 (2 per carrier) 1/2" x 5" Heat Treated
Free Swinging Alloy Steel with Uplift
Blade overlap 6"
Blade bolt Keyed with hardened flat washer & locknut
Stump jumper / Blade holder 3/16" Thick round dish shaped pan, reinforced with 1" x 5" blade bar
Deck ring Optional 3/8" x 4 1/2"
Front & rear guards Optional single row chain or dual row chain
Input driveline 540 & 1000 power take-off speed ASAE Cat. 6 with constant velocity u-joint
Intermediate driveline Standard - Category 5 with Slip-Clutch
Wing driveline Standard - Category 4 with Slip-Clutch or optional Category 5 with Slip-Clutch
Wheel options 6" x 21" Laminated tires
25.5" new tire with or without foam fill
29" x 16 ply used aircraft tires without foam filling
Number of wheels 5 - Wheel option: 4 on transport axle and one on wing axle
6- Wheel option: 4 on transport axle and two on wing axle
Transport axle Spring-cushioned on trailing arms
Hubs Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" shafts.
