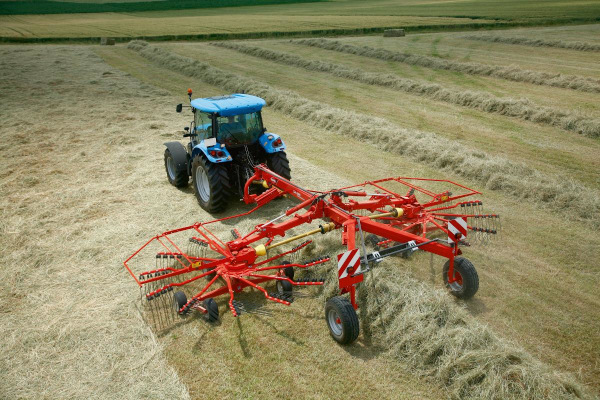

Kuhn GA 8121

Double tap to zoom



Features


Proven and Durable Components for Superior Raking

Masterdrive® Gearbox

The KUHN exclusive Masterdrive double-reduction gearbox is designed for all types of crops, larger rotors, and demanding conditions. The fully enclosed Masterdrive double-reduction gearbox incorporates a two-stage reduction drive for increased durability and reliability with a longer service life and lower power requirement. The large gears and gear teeth are meshed together with tight clearances to minimize wear and provide the best overall power transmission for maximum efficiency.


Double-Curved Tine Arms

Double-curved tine arms are designed to form fluffy and straight windrows for superior raking quality at high speeds. Fluffy windrows allow more air movement through the crop promoting fast and uniform drying!

KUHN rotary rakes achieve this by following two basic principles for ideal windrow formation. First, the tine arms maintain a positive forward position right up to the point where the forage is delivered to the windrow ensuring gentle crop handling and minimal ash incorporation. Second, a steep cam track allows the tines to be raised very quickly to provide additional clearance over the windrow.


Easy, Trouble-Free Adjustments

Adjustable Working Width

Preselection of the windrow width, using a spring-loaded pin while in transport position, is all it takes to adjust the working width and windrow width. When rotor arms are lowered, the rotors are automatically positioned at the desired setting. When raised for transport, the rotors are automatically placed in the lowest position to minimize transport height.

Adjustable Tine Height

Tine height adjustment, by a simple crank handle on each rotor, engages the tines in the stubble to get clean movement of crop to the windrow without digging in the soil.

Easy Transport

The GA 8121 has a transport width of only 9’3”, making it easy to transport on narrow roads. The tie rod controlled steering of the rear wheels provides even greater maneuverability.


Maneuverability and Stability on Uneven Ground

Pivoting Headstock

Increases maneuverability and stability on uneven ground. It also provides added comfort during transport, increasing your safety and peace of mind.

3D Suspension

For raking when every leaf counts, rotors closely follow the ground over undulating terrain. The tines collect the crop with the greatest precision: a particular benefit when raking rolling ground.

Tandem Axles

Ideal for raking fields with uneven ground (pivot tracks, rough terrain after grazing, etc.) and where higher raking speeds are desired.

Specifications

Model GA 8121
Working width - includes windrow 24'3" - 26'3" (7.4 - 8.0 m)
Clean swept width 23'7" - 25'7" (7.2 - 7.8 m)
Windrow width 4'7" - 6'7" (1.4 - 2.0 m)
Transport width 9'3'' (2.8 m)
Double curved tangential mounted tine arms Standard
Foldable safety guards Standard
Number of rotors 2
Vertical hydraulic folding rotors Standard
Rotor diameter 2 x 11'6'' (3.5 m)
Number of tines per tine arm 4
Number of tine arms 12 x 2
Center swath screen Optional
Fully enclosed gearbox Masterdrive GI
Ground adaptation 3-D terrain following
Removable tine arms Standard
Rotor flotation 3-D terrain following
Transport tires 10.0/75 - 15.3
Rear wheel steering Standard
Tires on each rotor 4 x 16 x 6.50-8 super-balloon tires
PTO speed 540
Overrunning clutch on PTO Standard
Hitch 2-point semi-mounted
Minimum PTO power requirement 70 hp (50 kW)
Minimum hydraulic pressure 1,500
Required tractor hydraulic connections 1 SA
Road lights and signaling Standard
Machine net weight approx. 4,255 lbs (1,925 kg)
Check chain Standard
