The Master 123/153/183 plows have been designed to meet the requirements of many operations to provide a machine that is easy to use and strong enough to meet the demands of today’s mid-size to large operations to achieve maximum productivity. This plow range is available from 3 to 7 bottoms in either traction-bolt or non-stop hydraulic. The strength, simplicity and different options available make these plows fully adaptable to your conditions. - Less
The Master 123/153/183 plows have been designed to meet the requirements of many operations to provide a machine that is easy to use and strong enough to meet the demands of today’s mid-size to large operations to achieve maximum productivity. This plow range is available from 3 to 7 bottoms in either traction-bolt or ... + Read More
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
The main beam is supported by a side-mounted, triangular reinforcement welded along the length of the front section. This strengthens the beam in this high-stress area and gives substantial advantages when compared to a conventional plow design.
One-Piece Main Link
Designed for strength and long life, the main link is assembled with either bronze or steel bushings, depending on the model of plow.
Easy to Adjust Skimmers
Each skimmer is totally independent left from right and is firmly held in a sheath-like support. The skimmers are shear bolt protected and are adjustable in three directions:Forwards and backwards – with a choice of three positions, the sheath bolts to the leg support via countersunk holes to avoid any risk of free play.Up and down – rapid and precise height adjustment (7 ½” of adjustment) also with countersunk holes in the skimmer leg for easy locking of the leg at the desired height.Side to side – for correct adjustment in relation to disc coulter (where fitted).
Front Furrow Width/Angling Adjustment
The front furrow width is adjusted to its optimum setting according to the tractor linkages and ground conditions. Because of the parallelogram of the two linkages, any adjustment in front furrow width automatically adjusts the angling of the plow, allowing the tractor to always pull in perfect line. Adjustments are quickly carried out by simply adjusting the turnbuckle or by activating the hydraulic cylinder.
Multiple Moldboard Options
H4 Moldboard: The H4, helicoidal, Scandinavian-type moldboard provides well-formed plowing to a normal depth range of 7-12”. The share is fitted with a reversible/replaceable point that greatly increases the life of the share. Recommended for fall plowing, the H4 moldboard is especially suited for heavy and damp clays. Furrow passes are well defined and trash burial is excellent.
N Moldboard: The helico-cylindrical N moldboard plows to a depth of 14”. Designed to be highly versatile, it is cylindrical at front, helicoidal at rear. A low draft ensures a partly broken furrow with excellent trash burial. Recommended for spring plowing, this moldboard is versatile and works well in sandy or clay soils.
VP Slatted Moldboard: The VP slatted moldboard composed of independent and interchangeable slats. Reduces pulling power, due to a lower moldboard surface area. Designed for use in extremely sticky muck and clay soils. Not for use in sand or loam soils or in soils with rocks or stones. The multiple slats allow individual replacement from wear.
Share Point Options
Olympic®: Reversible for maximum efficiency. More pronounced shape at wearing zones on the point for longer life and better protection of the landside. Point is self-sharpening for good ground penetration at all times.
Marathon®: Reversible for maximum efficiency and features a step resulting in better landside protection.
Super Marathon®: Fitted with a tungsten carbide tip. High wear resistance with four to five times the life of a traditional share point. A sharp working edge is maintained for excellent ground penetration. Excellent for highly abrasive soils without rocks or stones.
Plow Leg Protection
Traction Bolt. A clean break of the traction bolt, following a force of 5,280 – 8,820 pounds at the plow point, avoids the risk of nuisance shearing.
The bolt runs with the line of force and is pulled apart – unlike shear bolts which are cut
The bolt support never deforms or becomes rounded
Once the bolt breaks, it simply falls away for quick and easy replacement
After years of use the plow bottoms remain perfectly inline
Non-Stop Hydraulic (NSH) Reset. When a field obstacle is met, a rapid breakaway of the plow leg occurs. Once the obstacle is passes there is an increase in pressure, bringing the bottom quickly and firmly back into working position. The system also acts as a shock absorber in rocky ground, increasing plow life.
Heavy-Duty Plow Leg Articulation and Tie Rod. All force is transmitted in a straight line through a one-piece forged and heat treated tie rod.
Trash Burial Options
Trashboard: For trash burial in difficult conditions where the quantity of trash may otherwise block up the skimmers.
Helicoidal ZH Skimmer: Helicoidal skimmers are for deep trash burial. These skimmers are well adapted to grasslands and fields with cover crops.
ZRL High-Capacity Skimmer: This high-capacity skimmer is for trash incorporation throughout the soil profile. It is excellent for burying straw and corn trash.
Disc Coulters" Discs have a diameter of 20”, plain or notched. The disc serves to cut the furrow wall in front of the plow bottom giving a cleaner finish, and improving trash sizing and incorporation.
Standard Rubber Depth Wheel
The depth wheel follows any change of plowing width. It features simple bolt adjustments with the ability to set left and right sides independently. It can be placed in many locations on the frame to ensure optimum positioning for all conditions.

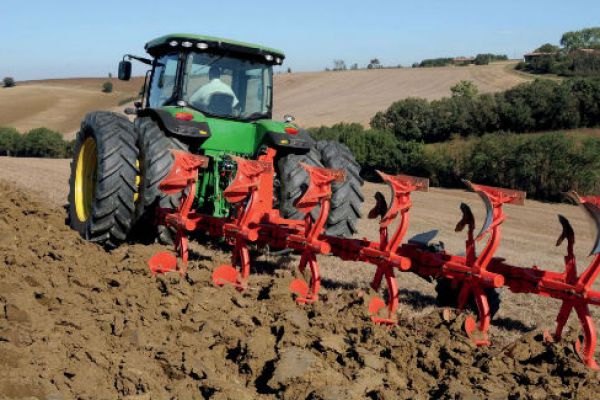

Multi-Master 183 OL 6(5E+1)
Number of bottoms per side
Extendable by one bottom
Yes on T model, No on NSH model
H4 long helicodial
Hydraulic rollover with 1 cylinder
Maximum tractor power for T version
330 hp (243 kW)
Maximum tractor power for NSH version
330 hp (243 kW)
Approximate machine weight for T version
5,602 lbs (2,541 kg)
Approximate machine weight for NSH version
5,974 lbs (2,710 kg)
14", 16", 18", or 20" (35, 40, 45, or 50 cm) delivered at 18" (45 cm)
31.5" (80 cm)
Point to point clearance for T models
35" (89 cm)
Point to point clearance for NSH models
38" (97 cm)
Offset and angling adjustment
Hydraulic offset and mechanical angling adjustment
Cat. 3 cross shaft with swift hitch
Hydraulic beam folding
Standard (allows work in-furrow)
Adjustable depth wheel with tire
690 x 320 mm standard
Maximum outside tractor tire width when working on-land
