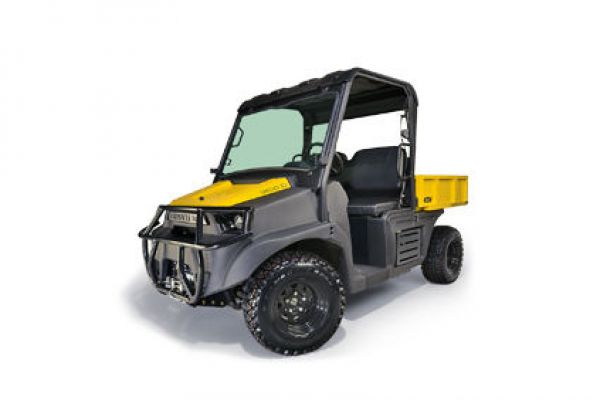

Hustler MDV™

Double tap to zoom



Features

Floating Rear Axle
The MDV’s floating rear axle maintains a constant ground clearance even at maximum load.

Spacious Cab
The MDV’s spacious cab is easy to get in and out of with heavy clothes, coats, etc.

Fast Top Speed
Top speed of 37 mph.

Easy Serviceability
Easy-to-reach serviceability points equals better accessibility to maintenance areas.

Fuel Capacity
14-gallon fuel tank (nearly twice the capacity of the leading UTV).

2WD/AWD
2WD/AWD traction offers flexibility in driving conditions.

Specifications

Engine
Type Kohler KDW 1003
Displacement 1028cc
Horsepower 23.4 hp
Fuel Injection Indirect injection
Fuel Type Diesel
Cooling System Liquid cooled
Electrical 12V system, 65 amps
Drive Train
Drive System 2WD/AWD
Gear Selection Lo/Hi-Neutral, Reverse
Top Speed 37 mph
Suspension
Front Suspension Independent front with flex swing arm
Rear Suspension Floating rear axle with coil over
Brakes
Service Brakes 4-Wheel hydraulic disk
Tires & Wheels
Tire Size Front 350 Mag 25" x 10" - 12"
Tire Size Rear 350 Mag 25" x 10" - 12"
Capacities
Fuel Capacity 14 gal.
Towing Capacty 1650 lb
Cargo Box Capacity 1200 lb
Load Capacity 1685 lb
Vehicle Dimensions
Overall Length 121.2"
Overall Height 78"
Overall Width 61.75"
Weight 1850 lbs.
Wheelbase 82.5"
Cargo Bed Dimensions 45.9" x 58.2" x 11.5"
Ground Clearance 8"
General
Power Steering Standard
Turning Radius 15'9"
Lighting Headlights
Standard Instrumentation
Hour Meter Included
Oil Light Included
Temperature Light Included
Gear Select Included
Speedometer Included
Horn Included
Fuel Gauge Included
12V Port Included
Width w/ Chute Up 57.1"
Tire Width 46.75"
Dimensions w/ Catcher
Catcher Type Side Catcher
Powered/Non-powered Non-powered
Catcher Capacity 3.5 bushel
Mower Length w/ Catcher 75.88"
Mower Width w/ Catcher 75.2"
