Specializing in farm equipment sales, parts, and service.

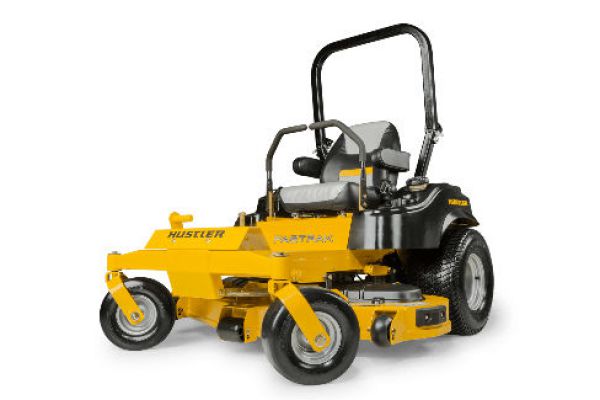

Hustler 54" Kawasaki FR691 Rear Discharge

Double tap to zoom



Features

Automatic Park Brake
Auto engages when steering levers are open.

Heavy-Duty Features
Commercial-style decks and commercial-grade frame rails. Up to 60" deck size available.

Powerful Engine Options
Kawasaki or Kohler engine options available.

Large Drive Tires
Large drive tires provide a smoother ride experience. The FasTrak features 22" drive tires.

SmoothTrak™ Steering
Responsive, precise steering control.

Premium Seat
Premium bolstered seat with armrests that provides exceptional comfort.

Specifications

Engine
Manufacturer Kawasaki
HP (Per SAE J 1995.) 23 HP
Displacement 726cc
Cooling Air Cooled
Air Cleaner Single Stage
Engine Warranty 3 year
Drive System
Type Dual Hydrostatic
Pumps n/a
Wheel Motors n/a
Hydraulic Lines n/a
Hydraulic Cooling n/a
Reservoir Capacity n/a
Transmission HydroGear ZT 3100
Speed 8 mph
Parking Brakes Patented Automatic
Decks
Cutting Width 54"
Cutting Heights 1.5"-4.5"
Deck Lift Foot Operated
Depth 5"
Blades 3
Blade Length 3 - 18.50" x 2.50" x .20"
Blade Tip Speed 18,910 fpm
Spindles Aluminum w/ 1.0" Shafts and Sealed Ball Bearings
Deck Belts n/a
Drive Electric PTO Clutch
Construction 10ga. Fabricated
Spindle Mounts Reinforced 11ga.
Impact/Trim Areas 3/8" x 1" Steel Bar
Construction
Frame 1.5" x 3" x .125" Steel
Deck Carrier Frame n/a
Engine/Transmission Frame n/a
Engine Plate n/a
Front Axle Fabricated w/ Sealed Ball Bearings
Front Caster Wheels Heavy-Duty Ball Bearings, Greasable
Front Caster Forks Fabricated 3/8" Steel
Operator Platform n/a
General
Seat Custom Bolstered Vinyl w/ Internal Suspension and Armrests
Fuel Capacity 5 gal.
Cup Holder Yes
Front Tire 13 x 6.5 - 6
Drive Tire 22 x 11 - 10
Productivity
Acres per Hour 3.48
Dimensions
Weight 860 lbs.
Height 44.3"
Height w/ ROPS Up n/a
Height w/ ROPS Folded n/a
Length 73.6"
Width n/a
Width w/ Chute Up 54.85"
Tire Width 52"
