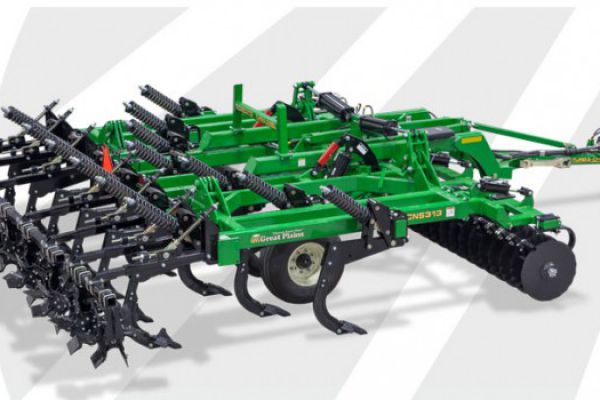

Seedbed Preparation TC5321

Double tap to zoom



Features

TURBO COULTERS
The turbo design allows the blade flute to attack the residue vertically, providing improved cutting and penetration with decreased hairpinning.

TOGGLE-TRIP RESET SHANK
The Heavy-Duty Toggle Trip Shank has a 2,450-pound horizontal trip force and will automatically reset when tripped.

AVAILABLE SHANK COMBINATIONS
Order the Turbo-Chisel the way you want it with two different shank combinations: Standard Chisel (pictured: two shanks on the left) or Heavy-Duty Parabolic (pictured: shank on the far right).

Exclusive Maintenance-Free Bearings

Reduce maintenance time and extend life of bearings. These 360° self-aligning bearings are never sideloaded. A six-lip seal on each side locks in grease and prevents contamination. Additionally, the walking beam pivots utilize Teflon™-coated bushings, eliminating the need for tapered bearings and grease in pivot points.

Specifications

Model TC5321
SHANK SPACING 15"
COULTER SPACING 7.5"
TRANSPORT TIRES 12.5Lx15
F-ply (4)
WEIGHT (approx lbs) 15,650
PTO H.P. REQ (min) Option 26: 30hp per shank
DIMENSIONS
TILLAGE WIDTH 26' 3"
TRANSPORT WIDTH 14' 9"
TRANSPORT HEIGHT 13' 6"
TILLAGE INFO
CENTER SECTION 10'
1ST WING SECTION 8' 9"
