Specializing in farm equipment sales, parts, and service.

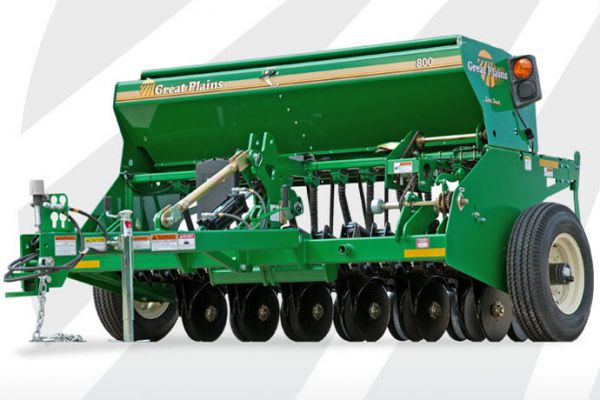

Seed Placement 800

Double tap to zoom



Features

Lockout Hubs

Disengage rotating drive parts during transport, extending life of components.

HYDRAULIC OPENER LIFT / DOWN PRESSURE

Tractor hydraulics raise and lower the openers quickly. They also apply static down pressure to the row units.

CALIBRATION CRANK

Specialty seeds are expensive. Calibrating your machine allows you to control the amount you use.

T-Handle Opener Depth Adjustment

Provides 18 different positions for accurate seed depth control.

4-Speed Gearbox

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

Specifications

MODEL INFO 8' End Wheel
MODEL 800
PRIMARY DESIGN End Wheel Min-Till
ROW SPACINGS 6" (15.24 cm)
7.5" (19.05 cm)
NUMBER OF OPENERS 15 - 6" spacing
12 - 7.5" spacing
TIRE SIZE 7.00-15LT 8-ply
Hp REQUIREMENTS (min) 45 hp
WEIGHT (Approx.) 2,379 lbs* (1,079 kg)
DIMENSIONS
WORKING WIDTH 7'6" (2.28 m)
WIDTH 9'9" (2.97 m)
LENGTH (transport) 12' (3.66 m)
CLEARANCE (transport) 9" (22.86 cm)
HEIGHT (transport) 5'4" (1.63 m)
OPENER INFO
OPENER SERIES 00 Series
OPENER TRAVEL 8" (20.32 cm)
OPENER DEPTH RANGE 0-3.5" (0-8.89 cm)
OPENER DOWN PRESSURE 90-180 lbs (40.82-81.64 kg)
COULTER N/A
COULTER PRE-LOAD N/A
CAPACITIES
MAIN BOX CAPACITY 16 bu.
SMALL SEED BOX 2 bu.
NATIVE GRASS BOX N/A
FERTILIZER 8 cu./ft.
2ND MAIN BOX N/A
