Specializing in farm equipment sales, parts, and service.

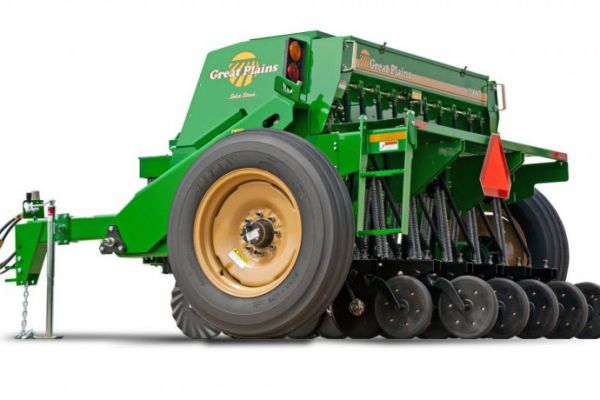

Seed Placement 706NT

Double tap to zoom



Features

LOCK-OUT HUBS

Disengages all drive components, reducing wear and tear during transport.

HIGH TRANSPORT CLEARANCE

With the high clearance and end wheel design, the 706NT can virtually go anywhere your tractor can pull it without gouging or bottoming out.

ADJUSTABLE HITCH HEIGHT

Six-position hitch adjusts to your tractor's hitch height to keep the drill level in planting position.

T-Handle Opener Depth Adjustment

Provides 18 different positions for accurate seed depth control.

4-Speed Gearbox

Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

Specifications

MODEL INFO 7' PULL-TYPE
MODEL 706NT
PRIMARY DESIGN End Wheel No-Till
ROW SPACINGS 7.5" (19.05 cm)
NUMBER OF OPENERS 10
TIRE SIZE 9.00 x 24 8-ply
Hp REQUIREMENTS (min) 55+ hp
WEIGHT (Approx.) 3,900 lbs* (1,769 kg)
DIMENSIONS
WORKING WIDTH 7' (2.13 m)
WIDTH 9'10" (3.00 m)
LENGTH (transport) 13'10" (4.22 m)
CLEARANCE (transport) 13.5" (34.29 cm)
HEIGHT (transport) 6'7" (2.0 m)
OPENER INFO
OPENER SERIES 06 Series
OPENER TRAVEL 6.5" (16.51 cm)
OPENER DEPTH RANGE 0-3.5" (0-8.89 cm)
OPENER DOWN PRESSURE 90-180 lbs (40.82-81.64 kg)
COULTER 5/8" Turbo or 5/16" Fluted
COULTER PRE-LOAD 450 lbs (203 kg)
CAPACITIES
MAIN BOX CAPACITY 17.5 bu.
SMALL SEED BOX 1.68 bu.
NATIVE GRASS BOX 7 bu.
FERTILIZER 6.5 cu./ft.
2ND MAIN BOX 7 bu.
